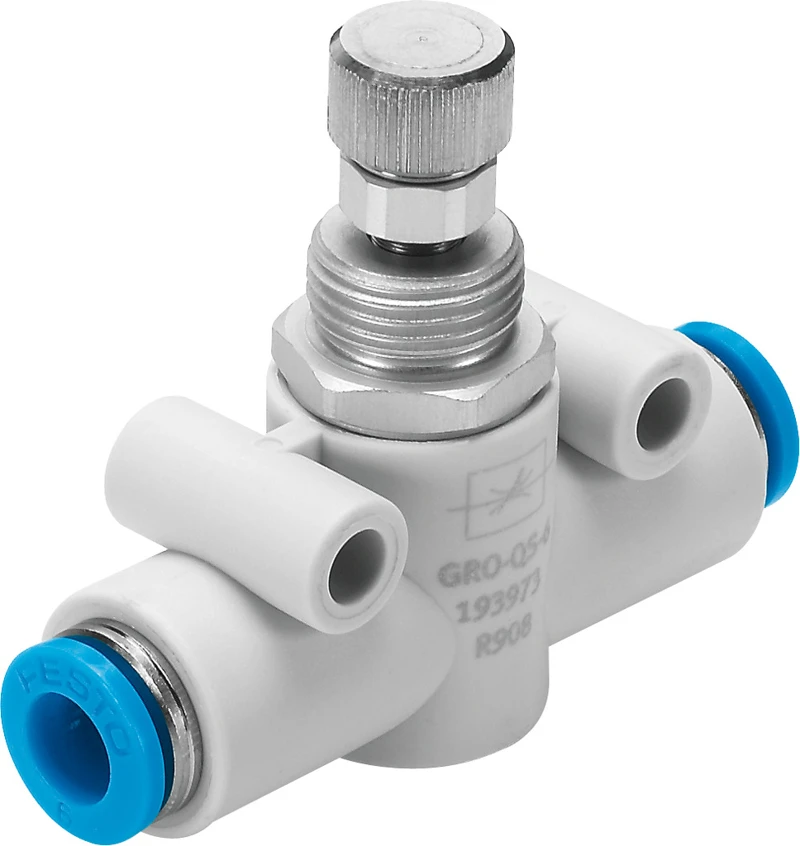

Throttle valve, GRO-QS-4
SKU: 193972
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Throttle valve
• Valve function Flow control function
• Pneumatic connection, port 1 QS-4
• Pneumatic connection, port 2 QS-4
• Adjustment component Knurled screw
• Type of mounting Either: Front panel mounting, With through-hole, With accessories
• Standard nominal flow rate in flow control direction 110 l/min
• Standard nominal flow rate in blocked direction 165 l/min
• Operating pressure 0 bar ... 10 bar
• Ambient temperature -10 °C ... 60 °C
• Material housing PA-reinforced
Buy currently uses Select Automation shop pricing and checkout.
Throttle valve, in-line installation GRO
• Bidirectional flow valve in sturdy polymer design for in-line installation.
• Flow control valve, flow control at both ends
• In-line flow control valve
• Connections: push-in connector at both ends
• Connections: in-line, Y-shape
• Polymer design
