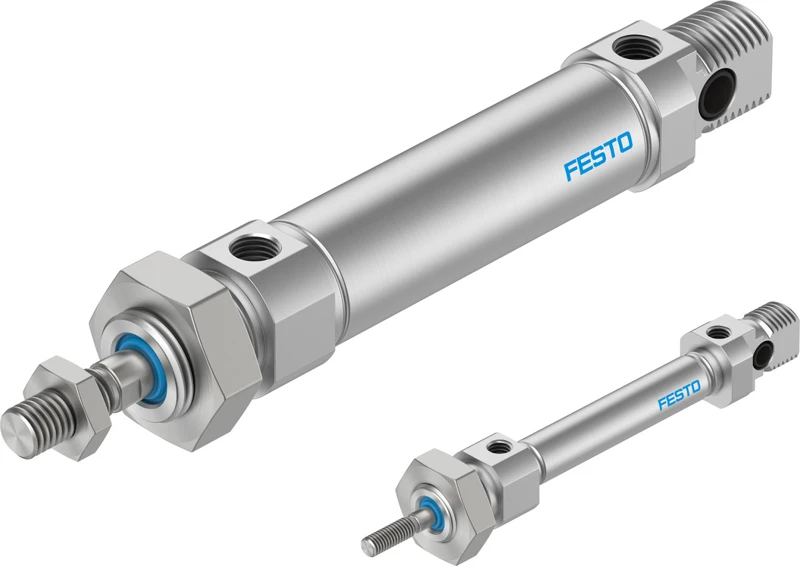

ISO cylinder, DSNU-10- -

Specifications • Round cylinders DSNU • Stroke 1 mm ... 100 mm • Piston diameter 10 mm • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Conforms to standard CETOP RP 52 P, ISO 6432 • Design Piston, Piston rod, Cylinder barrel • Position detection Via proximity switch • Variants Extended male piston rod thread, Piston rod with male thread shortened at one end, Extended piston rod, Clamping unit on the piston rod, Axial supply port, With direct mounting, Lateral supply port, Low friction, Through piston rod, Heat-resistant seals max. 120°C, Piston rod at one end
