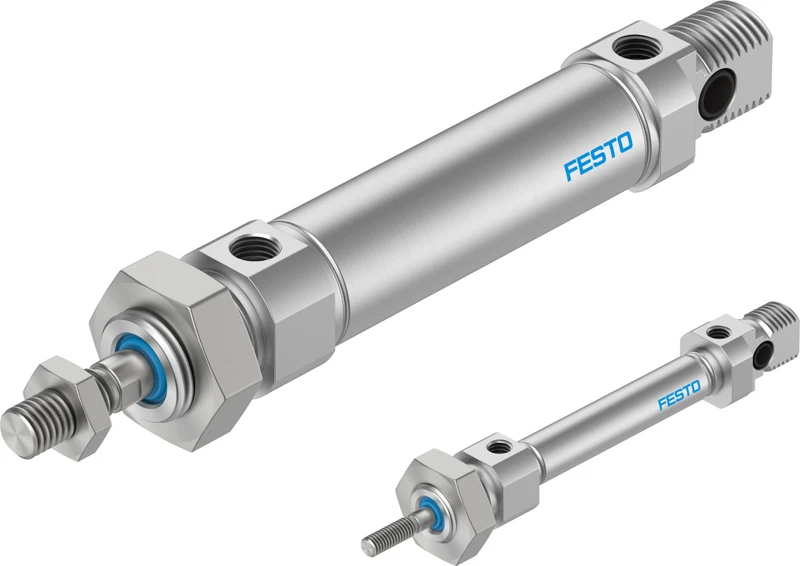

ISO cylinder, DSNU-20- -

Specifications • Round cylinders DSNU • Stroke 1 mm ... 320 mm • Piston diameter 20 mm • Cushioning Elastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends • Mounting position optional • Conforms to standard CETOP RP 52 P, ISO 6432 • Design Piston, Piston rod, Cylinder barrel • Position detection Via proximity switch • Variants Increased chemical resistance, Extended male piston rod thread, Piston rod with female thread, Piston rod with male thread shortened at one end, Extended piston rod, Clamping unit on the piston rod, Axial supply port, With direct mounting, Lateral supply port, With protection against rotation, High corrosion protection, Uniform, slow movement, Low friction, Through piston rod, Heat-resistant seals max. 120°C, Piston rod at one end
