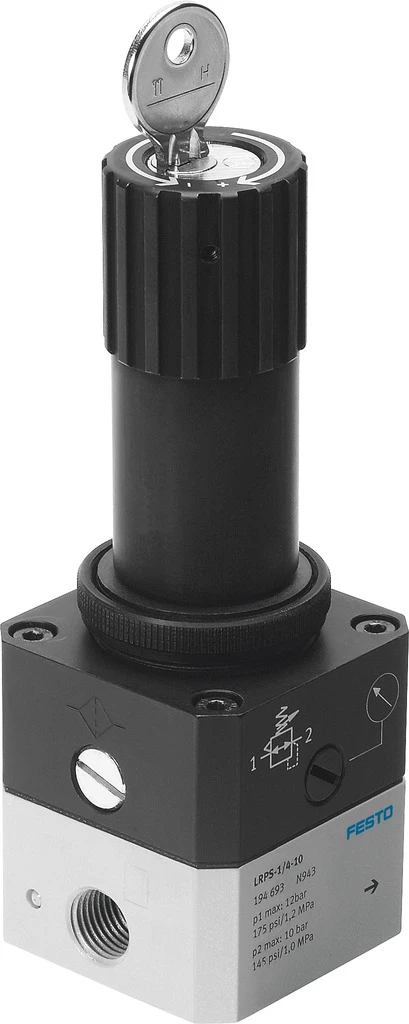

Precision pressure regulator, LRPS-1/4-4
SKU: 194692
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Precision pressure regulators LRP/LRPS, size 50
• Actuator lock Rotary knob with integrated lock
• Mounting position optional
• Design Piloted precision diaphragm control valve
• Controller function Output pressure constant, With secondary venting
• Symbol 00991540
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) Prepared for G1/8
• Operating pressure 0.1 MPa ... 1.2 MPa
• Operating pressure 1 bar ... 12 bar
• Pressure regulation range 0.05 bar ... 4 bar
• Inlet pressure 1 1 bar ... 12 bar
• Max. pressure hysteresis 0.02 bar
Buy currently uses Select Automation shop pricing and checkout.
Precision pressure regulator LRP, LRPS
• Lockable design
• Good control characteristics with minimal pressure hysteresis and primary pressure compensation
• High secondary exhausting
• Variants to EU Explosion Protection Directive (ATEX)
• Variants recommended for production systems for manufacturing lithium-ion batteries
