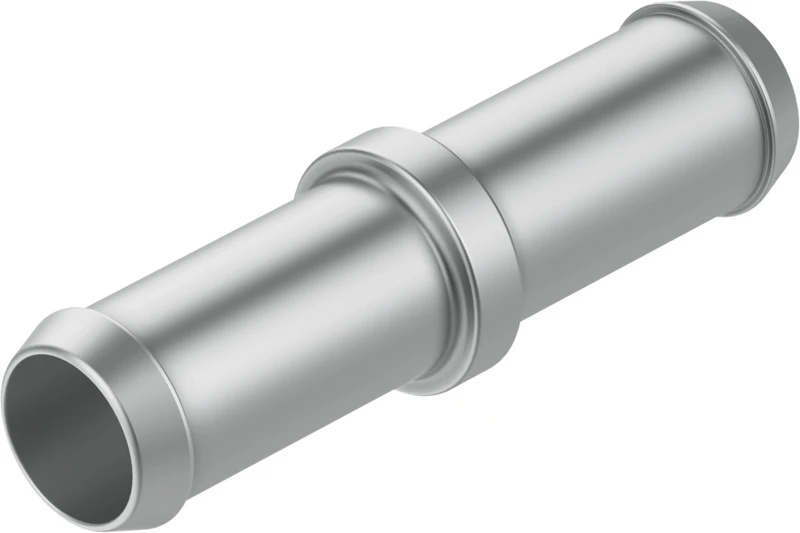

Barbed tubing connector, RTU-PK-2/3

Specifications • Barbed fitting CN • Barbed tubing connector RTU • Nominal size 1.5 mm • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • LABS (PWIS) conformity VDMA24364-B1/B2-L • Pneumatic connection, port 1 For tubing outer diameter of 4 mm • Pneumatic connection, port 2 For tubing outer diameter of 3 mm • Note on materials RoHS-compliant • Material housing Brass
