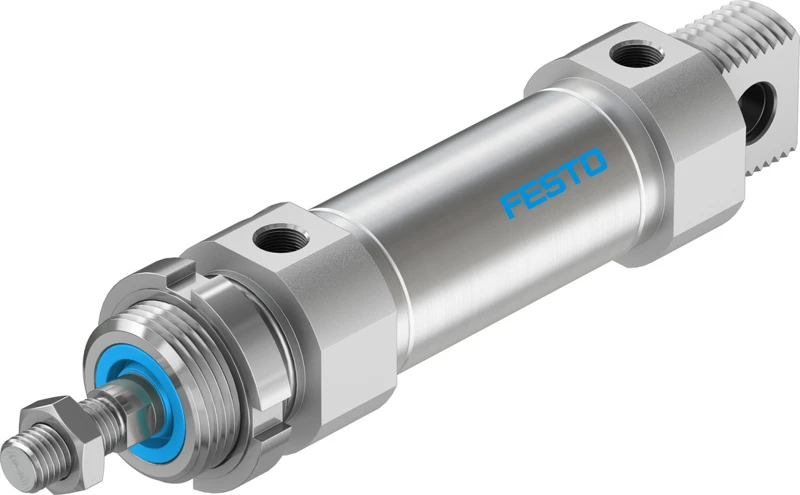

Round cylinder, DSNU-32-40-PPV-A
SKU: 196021
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Round cylinders DSNU
• Mode of operation Double-acting
• Piston diameter 32 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 482.5 N
• Stroke 40 mm
• Cushioning Pneumatic cushioning, adjustable at both ends
Buy currently uses Select Automation shop pricing and checkout.
Round cylinders DSNU
• Stainless steel piston rod
• Good running performance and long service life
• Piston rod with male and female thread
• Extensive range of accessories makes it possible to install the cylinder virtually anywhere
• The basic versions conform to ISO 6432, variants are based on these standards
• Piston @ 8 ... 63 mm
• Cylinder barrel made of stainless steel
• Bearing and end caps made of wrought aluminium alloy
