IE-PH-V04P-BP
SKU: 1962530000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
IE-PH-V04P-BP:

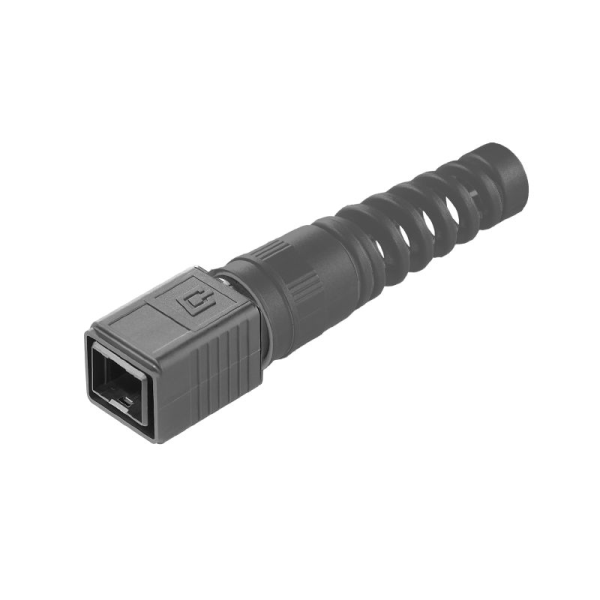

Push-pull plug-in connector according to IEC 61076-3-106 ver.4 (IEC24702), plastic, empty housing.
Plug housing, bending protection, empty enclosure, Variant 4 to IEC 61076-3-106, IP67.
Data Plugs:
Gender: male.
Housing main material: PA UL 94 V0.
Housing style: V4.
Outlet direction: Straight.
Protection degree: IP67.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 108.7 mm.
Depth (inches): 4.28 inch.
Height: 20.1 mm.
Height (inches): 0.791 inch.
Width: 21.2 mm.
Width (inches): 0.835 inch.
Net weight: 1.9 g.
Temperatures:
Operating temperature: -40 °C...70 °C.
eshop_Filter_00_General:
Weidmüller class short: Housing.
Weidmüller class target channel: housing (industrial ethernet).
eshop_Filter_01_02_Connectors:
Product type: Empty enclosure.
Type of connection: Miscellaneous.
General data:
Colour: Miscellaneous.
Housing main material: PA UL 94 V0.
Plugging cycles: 750.
Protection degree: IP67.
General standards:
Certificate no.(cULus): E316369.
Connector standard: IEC 61076-3-106 Var.4.
