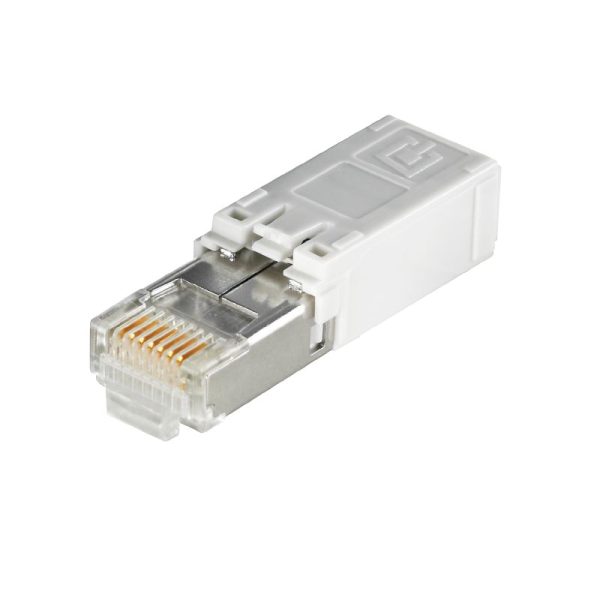

IE-PI-RJ45-TH

Specifications: Version: Plug insert RJ45 IDC, Plug insert RJ45, crimp. Quantity: 10. Operating temperature: -40 °C...70. Humidity: 0...93 % rel. humidity. Connection 1: RJ45. Connection 2: IDC. Description of article: Plug insert RJ45, crimp. Colour: Miscellaneous. Shock resistance acc. to IEC 60512-6-3: 250 ms-2. Vibration resistance acc. to IEC 60512-6-4: 50 ms-2 sinusoidal (9…500 Hz). Humidity: 0...93 % rel. humidity. Housing main material: Brass, PC UL 94 V0. Insulation cross-section, min.: 0.85 mm. Insulation cross-section, max.: 1.05 mm. Contact material: Phosphorus bronze. Contact surface: Gold over Nickel, Au ≥ 0.8 µm, Ni 2.54 µm. Connection diameter, solid: 0.4...0.51 mm. Conductor connection cross-section, solid (AWG): AWG 26/1...AWG 24/1. Connection diameter, flexible: 0.46...0.61 mm. Conductor connection cross-section, flexible (AWG): AWG 27/7...AWG 24/7. Sheath diameter, min.: 5 mm. Sheath diameter, max.: 7.3 mm. Shielding: 360 deg; all-round enclosure. Protection degree: IP67 with housing. Plugging cycles: 750. Electrical properties: Contact resistance: ≤ 20 m Ω. Current-carrying capacity at 50 °C: 1 A. Dielectric strength, contact / shield: ≥ 1000 V DC. Dielectric strength, contact / shield: ≥ 1500 V AC/DC. Insulation strength: 500 M Ω. PoE / PoE+: conforming to IEEE 802.3af.
