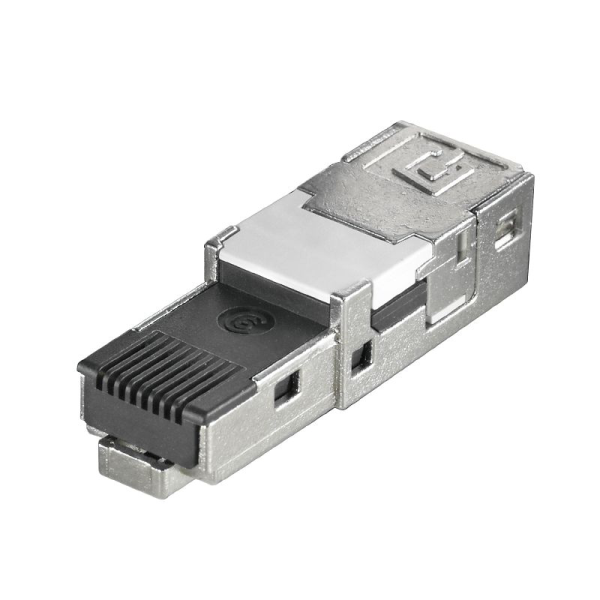

IE-PI-RJ45-FH

Specifications: Version: Plug insert RJ45 IDC. Quantity: 10. Operating temperature: -40 °C...70. Fire load: 49 kJ. Connection 1: RJ45. Connection 2: IDC. Description of article: Plug insert RJ45, no tools required. Wiring: TIA-568A, EIA/TIA T568 B, PROFINET. Colour: Miscellaneous. Housing main material: Zinc diecast. Insulation cross-section, min.: 0.85 mm. Insulation cross-section, max.: 1.6 mm. Contact surface: Gold over Nickel, Au ≥ 0.8 µm. Connection diameter, solid: 0.4...0.64 mm. Conductor connection cross-section, solid (AWG): AWG 24...AWG 22. Connection diameter, flexible: 0.48...0.76 mm. Conductor connection cross-section, flexible (AWG): AWG 26...AWG 22. Conductor connection cross-section, extremely flexible: Approval of the cable by Weidmüller necessary. Conductor connection cross-section, extremely flexible (AWG): Approval of the cable by Weidmüller necessary. Note, very finely stranded line connection: Approval of the cable by Weidmüller necessary. Shielding: 360 deg; all-round enclosure. Protection degree: IP67 with housing. Plugging cycles: 750. Ability to reconnect: ≥ 10 cycles (for the same or larger cross-section). Electrical properties: Contact resistance: ≤ 20 m Ω. Current-carrying capacity at 50 °C: 1 A. Dielectric strength, contact / shield: ≥ 1000 V DC. Dielectric strength, contact / shield: ≥ 1500 V AC/DC. Insulation strength: 500 M Ω. PoE / PoE+: conforming to IEEE 802.3af.
