IE-BI-RJ45-C
SKU: 1962840000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Front Com Vario combines several features into a single frame.
There is a large selection of data, signal, and power modules to choose from, and the system is simple to install.
In addition to being exceptionally compact, Front Com Vario has a number of unique product characteristics that will make project planning and work activities safer, more rapid, and future proof.
Additionally, the Front Com Vario system has a stylish housing design that satisfies all IP 65 protection class standards and gives the maximum impact resistance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:

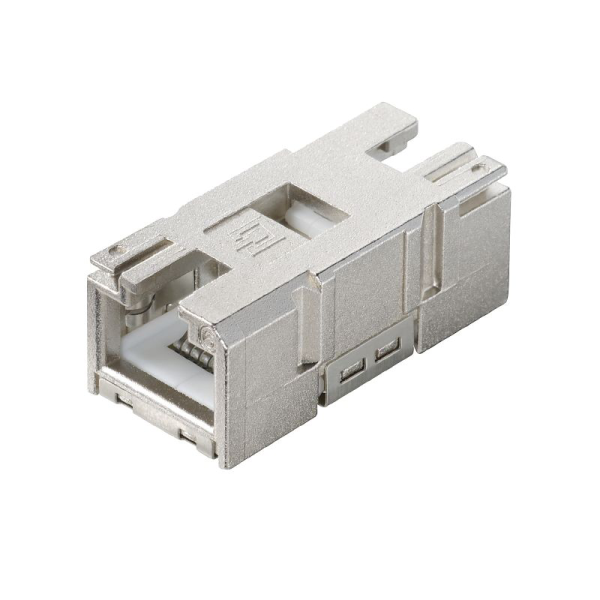

Version: RJ45 insert socket, Bulkhead inserts coupler.
Quantity: 1.
Operating temperature: -40 °C...70.
Fire load: 33 kJ.
Insert type: Insert data SteadyTec.
Product type: RJ45 insert socket.
Protection degree: IP67 with housing.
Connection 1: RJ45.
Connection 2: RJ45.
Description of article: Bulkhead inserts coupler.
Colour: Miscellaneous.
Housing main material: Zinc diecast.
Contact surface: Gold over Nickel, Au ≥ 0.8 µm.
Shielding: 360° all-round enclosure, FS 2.8 Ground connection for equipotential bonding.
Protection degree: IP67 with housing.
Plugging cycles: 750.
Electrical properties:
Dielectric strength, contact / shield: ≥ 1000 V DC.
Dielectric strength, contact / shield: ≥ 1500 V AC/DC.
Insulation strength: 500 M Ω.
PoE / PoE+: conforming to IEEE 802.3af.
