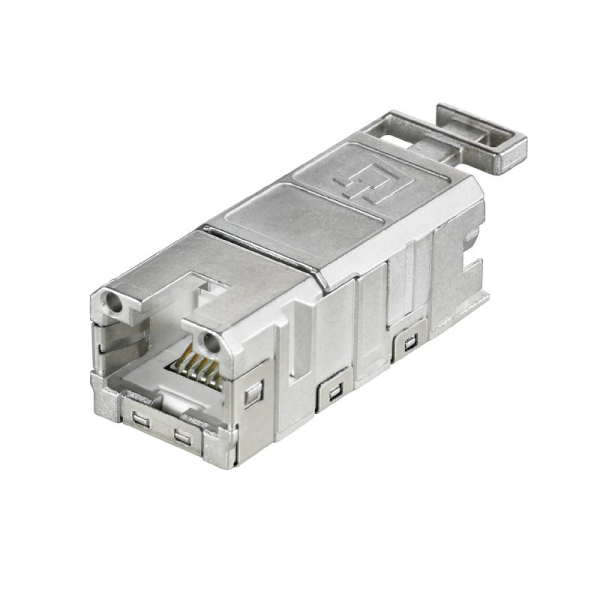

IE-BI-RJ45-FJ-A
SKU: 1962850000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Front Com Vario combines several features into a single frame.
There is a large selection of data, signal, and power modules to choose from, and the system is simple to install.
In addition to being exceptionally compact, Front Com Vario has a number of unique product characteristics that will make project planning and work activities safer, more rapid, and future proof.
Additionally, the Front Com Vario system has a stylish housing design that satisfies all IP 65 protection class standards and gives the maximum impact resistance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: RJ45 insert socket, Connector for base, TIA-568A.
Quantity: 10.
Operating temperature: -40 °C...70.
Humidity: 0...93 % rel. humidity.
Insert type: Insert data Steady Tec.
Product type: RJ45 insert socket.
Protection degree: IP67 with housing.
Connection 1: RJ45.
Connection 2: IDC.
Description of article: Connector for base.
Colour: Miscellaneous.
Shock resistance acc. to IEC 60512-6-3: 250 ms-2.
Vibration resistance acc. to IEC 60512-6-4: 50 ms-2 sinusoidal (9…500 Hz).
Housing main material: Zinc diecast.
Insulation cross-section, min.: 0.85 mm.
Insulation cross-section, max.: 1.6 mm.
Contact material: Spring steel, Ni 1.2 µm.
Contact surface: Gold over Nickel, Au ≥ 0.8 µm.
Connection diameter, solid: 0.4...0.64 mm.
Conductor connection cross-section, solid (AWG): AWG 24...AWG 22.
Connection diameter, flexible: 0.48...0.76 mm.
Conductor connection cross-section, flexible (AWG): AWG 26...AWG 22.
Shielding: 360° all-round enclosure, FS 2.8 Ground connection for equipotential bonding.
Protection degree: IP67 with housing.
Plugging cycles: 750.
Ability to reconnect: ≥ 10 cycles for AWG 23-26, ≥ 4 cycles for AWG 22.
Electrical properties:
Contact resistance: ≤ 20 m Ω.
Current-carrying capacity at 50 °C: 1 A.
Dielectric strength, contact / shield: ≥ 1000 V DC.
Dielectric strength, contact / shield: ≥ 1500 V AC/DC.
Insulation strength: 500 M Ω.
PoE / PoE+: conforming to IEEE 802.3af.
