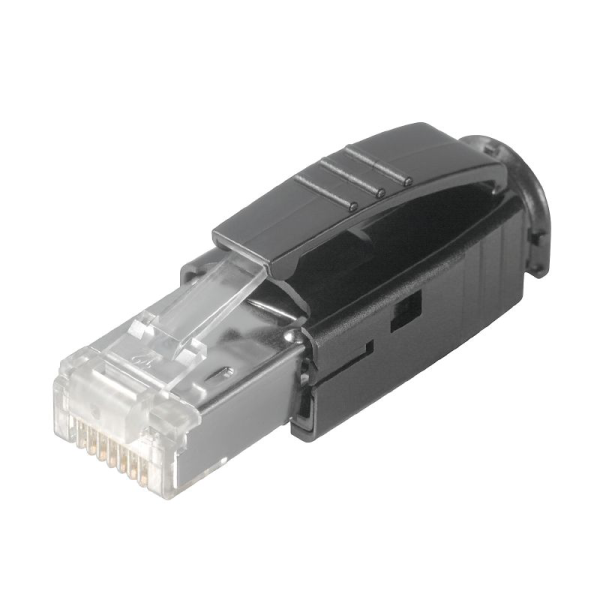

IE-PS-RJ45-TH-BK
SKU: 1963590000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
RJ45 crimp plug-in connector according to IEC 60603-7-51 for wire outer diameters up to 1.05 mm.
Electrical properties:
Contact resistance: ≤ 20 m Ω.
Current-carrying capacity at 50 °C: 1 A.
Dielectric strength, contact / contact: ≥ 1000 V AC/DC.
Dielectric strength, contact / shield: ≥ 1500 V AC/DC.
Insulation strength: 500 MΩ.
PoE / PoE+: conforming to IEEE 802.3af.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: RJ45 crimp plug, Plug with bending protection sleeve in black.
Quantity: 10.
Operating temperature: -40 °C...70 °C.
Connection 1: RJ45.
Connection 2: Crimp.
Description of article: Plug without bending protection sleeve.
Configuration: Connects piercing contacts and shielded connections in one step, retrofit for kink-prevention sleeves, multi-port compatible.
Colour: Miscellaneous.
Insulation cross-section, min.: 0.85 mm.
Insulation cross-section, max.: 1.05 mm.
Cable pull-out force, min.: 89 N.
Category: Cat.6A / Class EA (ISO/IEC 11801 2010).
Contact material: Phosphorus bronze.
Contact surface: Gold-plated.
Connection diameter, solid: 0.36...0.51 mm.
Conductor connection cross-section, solid (AWG): AWG 27...AWG 24.
Connection diameter, flexible: 0.46...0.61 mm.
Conductor connection cross-section, flexible (AWG): AWG 27...AWG 24.
MICE classification M: M1.
MICE classification I: I1.
MICE classification C: C1.
MICE classification E: E3.
Sheath diameter, min.: 5 mm.
Sheath diameter, max.: 7.3 mm.
Bending protection sleeve material: Polycarbonate PC, UL 94 V-0.
Shielding material: 0.5 mm brass, 2 µm nickel.
Shielding: 360 deg; all-round enclosure.
Protection degree: IP20.
Plugging cycles: 750.
Material insulator: Polycarbonate PC, UL 94 V-0.
