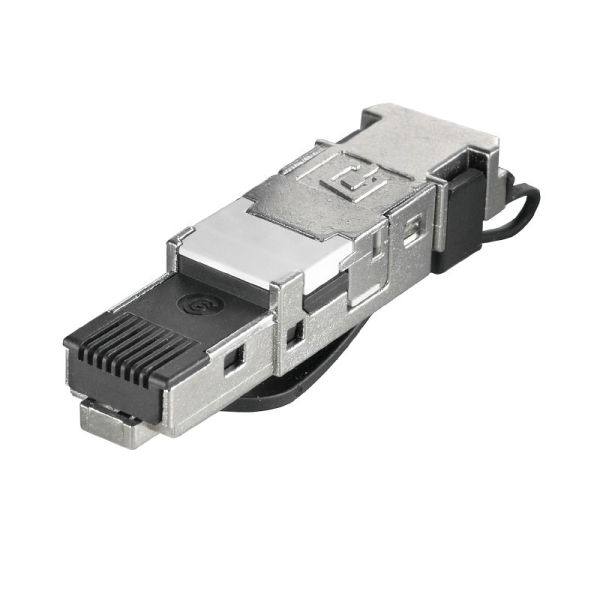

IE-PS-RJ45-FH-BK
SKU: 1963600000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
RJ45 crimp plug-in connector according to IEC 60603-7-51 for wire outer diameters up to 1.05 mm.
Electrical properties:
Contact resistance: ≤ 20 m Ω.
Current-carrying capacity at 50 °C: 1 A.
Dielectric strength, contact / contact: ≥ 1000 V AC/DC.
Dielectric strength, contact / shield: ≥ 1500 V AC/DC.
Insulation strength: 500 MΩ.
PoE / PoE+: conforming to IEEE 802.3af.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: RJ45 IDC plug, Cat.6A / Class EA (ISO/IEC 11801 2010), 8-core, 4-core, EIA/TIA T568 A, EIA/TIA T568 B, PROFINET.
Quantity: 10.
Operating temperature: -40 °C...70 °C.
Fire load: 77 kJ.
No Halogen.
Material locking lever: PA UL94-V0.
Material strain relief: PA UL94-V0.
Connection 1: RJ45.
Connection 2: IDC.
Configuration: Eight-wire field-assembled RJ45 plug with colour coding on the plug, TIA A/B/ProfiNet, multiport-ready.
Wiring: 8-core, 4-core, EIA/TIA T568 A, EIA/TIA T568 B, PROFINET.
Housing main material: Zinc diecast.
Insulation cross-section, min.: 0.85 mm.
Insulation cross-section, max.: 1.6 mm.
Category: Cat.6A / Class EA (ISO/IEC 11801 2010).
Contact material: Phosphorus bronze.
Contact surface: Gold over nickel.
Connection diameter, solid: 0.41...0.64 mm.
Conductor connection cross-section, solid (AWG): AWG 24/1...AWG 22/1.
Conductor connection cross-section, solid: 0.13...0.32 mm².
Connection diameter, flexible: 0.48...0.76 mm.
Conductor connection cross-section, flexible (AWG): AWG 26/7...AWG 22/7.
Wire connection cross section, finely stranded, min.: 0.141 mm².
Conductor connection cross-section, flexible: 0.14...0.35 mm².
Conductor connection cross-section, extremely flexible: Approval of the cable by Weidmüller necessary.
Conductor connection cross-section, extremely flexible (AWG): Approval of the cable by Weidmüller necessary.
Note, very finely stranded line connection: Approval of the cable by Weidmüller necessary.
MICE classification M: M1.
MICE classification I: I1.
MICE classification C: C1.
MICE classification E: E3.
Sheath diameter, min.: 5.5 mm.
Sheath diameter, max.: 8.5 mm.
Shielding: 360 deg; all-round enclosure.
Protection degree: IP20.
Insertion force: ≤ 30 N.
Plugging cycles: 750.
Material insulator: PA UL94-V0.
Ability to reconnect: ≥ 10 cycles (for the same or larger cross-section).
