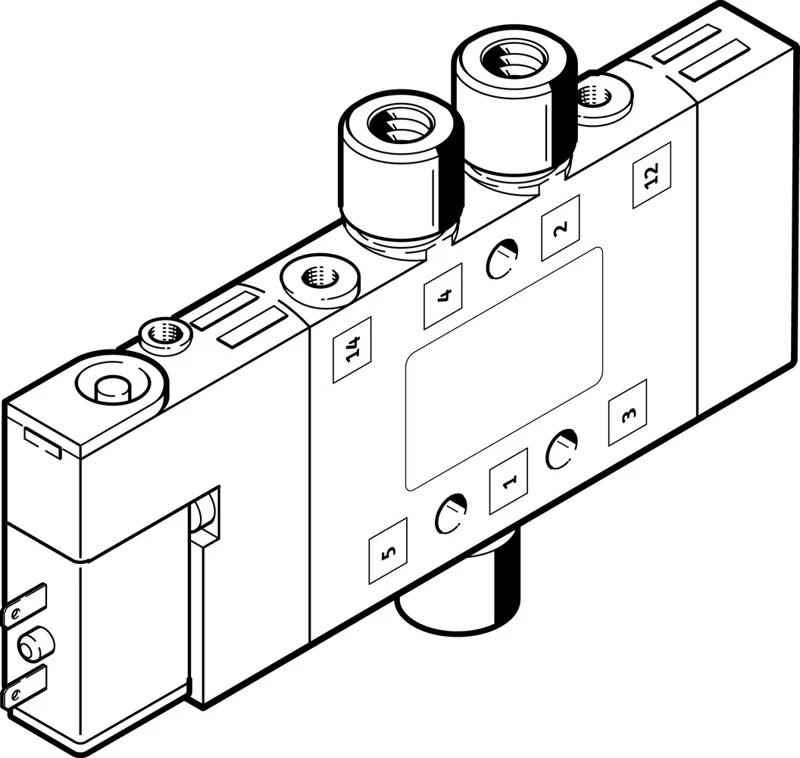

Solenoid valve, CPE10-M1BH-5L-M5
SKU: 196881
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves CPE10
• Valve function 5/2-way, monostable
• Type of actuation Electric
• Construction width 10 mm
• Standard nominal flow rate (standardised to DIN 1343) 180 l/min
• Pneumatic working port M5
• Operating voltage 24V DC
• Operating pressure 0.3 MPa ... 0.8 MPa
• Operating pressure 3 bar ... 8 bar
• Design Piston gate valve
• Type of reset Pneumatic spring
• Approval c UL us - Recognized (OL)
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve CPE
• Minimum width, low electrical power consumption and maximum flow control values: the solenoid valve CPE.
• Universal individual valve
• High flow rate relative to its size
