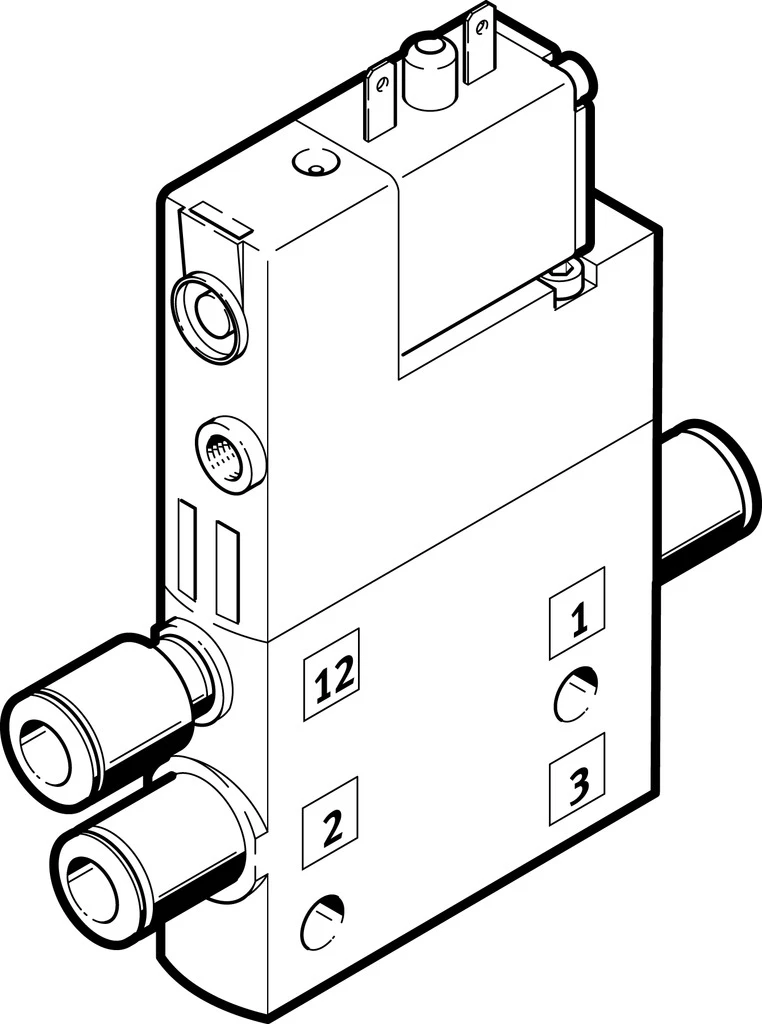

Solenoid valve, CPE14-M1BH-3OLS-QS-8
SKU: 196894
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves CPE14
• Valve function 3/2 open, single solenoid
• Type of actuation Electric
• Construction width 14 mm
• Standard nominal flow rate (standardised to DIN 1343) 810 l/min
• Pneumatic working port QS-8
• Operating voltage 24V DC
• Operating pressure -0.09 MPa ... 1 MPa
• Operating pressure -0.9 bar ... 10 bar
• Design Piston gate valve
• Type of reset Pneumatic spring
• Approval c UL us - Recognized (OL)
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve CPE
• Minimum width, low electrical power consumption and maximum flow control values: the solenoid valve CPE.
• Universal individual valve
• High flow rate relative to its size
