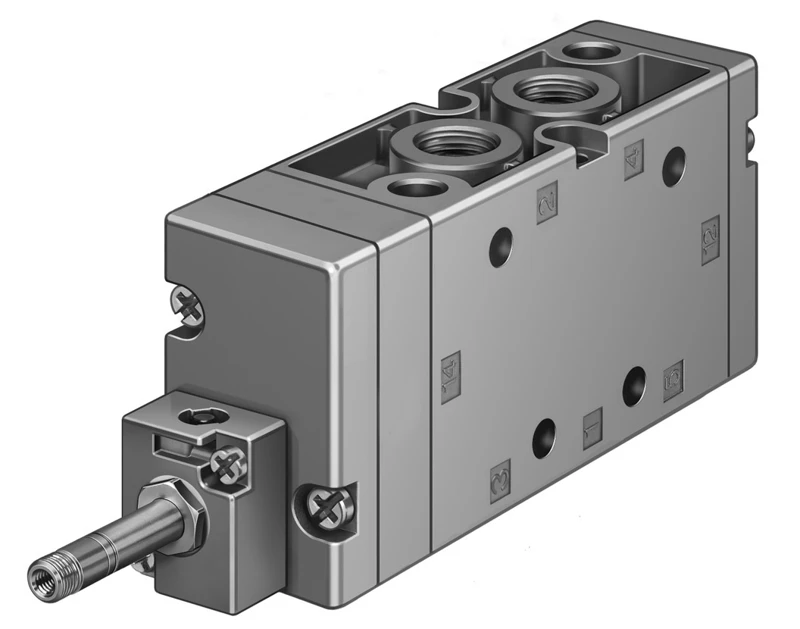

Solenoid valve, MFH-5-3/8-B

Specifications • Solenoid valves MFH-B, Tiger 2000 • Valve function 5/2-way, monostable • Type of actuation Electric • Construction width 40 mm • Standard nominal flow rate (standardised to DIN 1343) 2000 l/min • Pneumatic working port G3/8 • Operating pressure 0.25 MPa ... 1 MPa • Operating pressure 2.5 bar ... 10 bar • Design Piston gate valve • Type of reset Mechanical spring • Nominal size 12 mm • Grid dimension 41 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional
