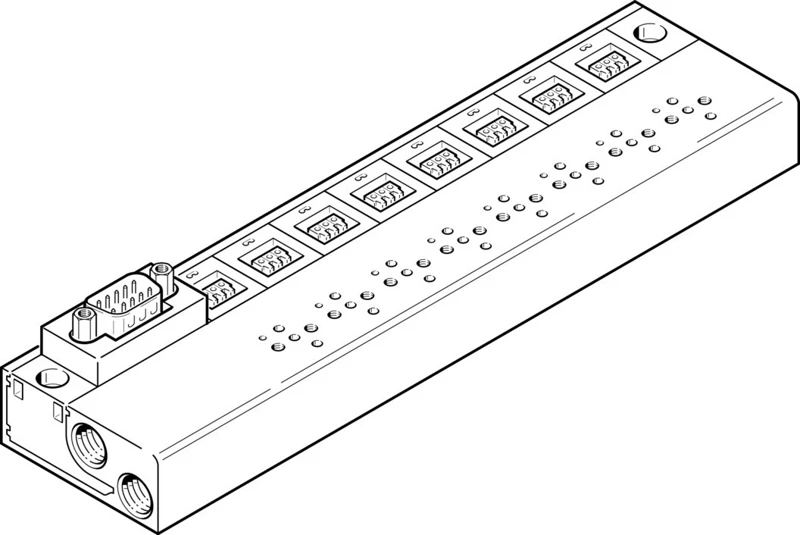

Manifold block, MHP1-PR6-3-PI-D9

Specifications • Solenoid valves MH1 • Manifold block • Max. number of valve positions 6 • Operating pressure 0 bar ... 8 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Ambient temperature -10 °C ... 60 °C • Mounting method for sub-base With through-hole • Mounting method for valve Via female thread • Pneumatic connection, port 1 M7 • Pneumatic connection, port 3 M7 • Material sub-base Wrought aluminium alloy
