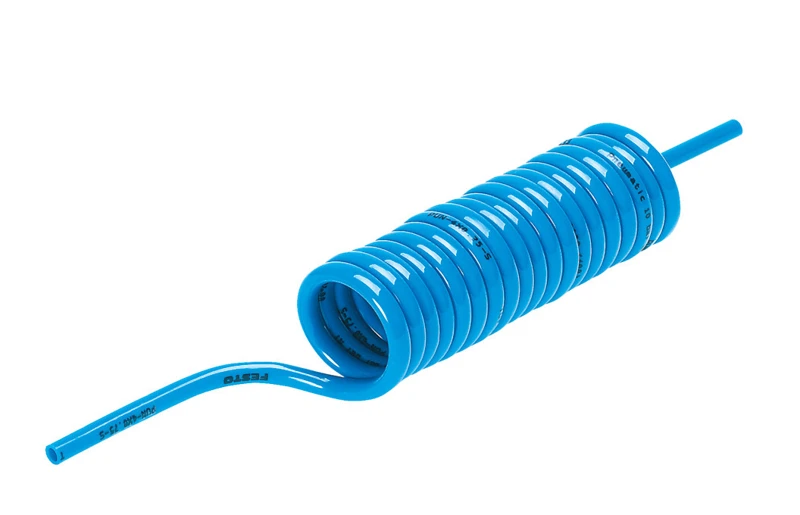

Spiral plastic tubing, PUN-10X1,5-S-2-BL
SKU: 197597
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Spiral plastic tubing PUN-S, colour blue
• Working length 2 m
• Outside diameter 10 mm
• Block length 0.43 m
• Inside diameter 7 mm
• Winding diameter 80 mm
• Number of turns 22
• Temperature-dependent operating pressure -0.095 MPa ... 1 MPa
• Temperature-dependent operating pressure -0.95 bar ... 10 bar
• Temperature-dependent operating pressure -13.775 psi ... 145 psi
• Approval German Technical Control Board (TÜV)
• Certificate issuing authority B 013277 0506 00
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature -35 °C ... 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Spiral plastic tubing PUN-S, PUN-S-DUO
• The single or dual tubing PUN-S/PUN-S-DUO with straight outlets is flexible in use, extremely elastic and has an unbeatable reset force for motion sequences in machines.
• The pre-assembled solution PUN-SG has rotatable threaded outlets for the supply of compressed air tools.
• Polyurethane
• Also available as DUO plastic tubing
• Operating medium: compressed air, vacuum
• High resistance to UV radiation and stress cracks
