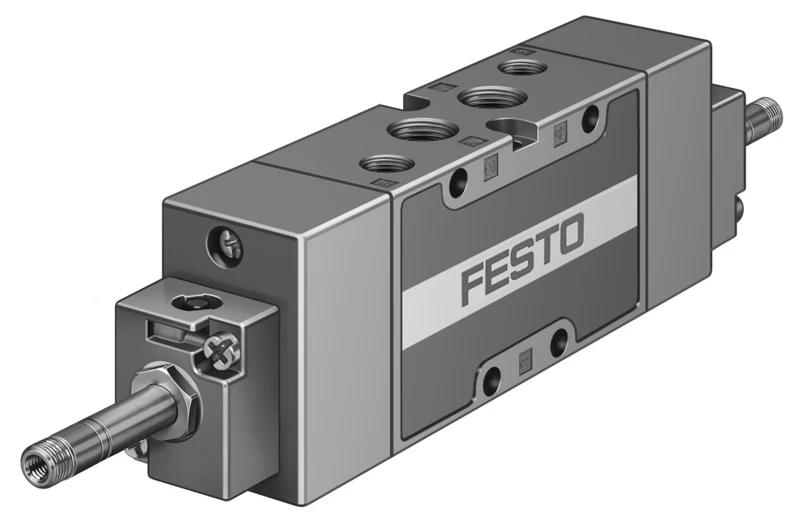

Solenoid valve, JMFH-5-1/4-B
SKU: 19789
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves JMFH-B, Tiger 2000
• Valve function 5/2 double solenoid
• Type of actuation Electric
• Construction width 32 mm
• Standard nominal flow rate (standardised to DIN 1343) 1600 l/min
• Pneumatic working port G1/4
• Operating pressure 0.2 MPa ... 1 MPa
• Operating pressure 2 bar ... 10 bar
• Design Piston gate valve
• Nominal size 10 mm
• Grid dimension 33 mm
• Exhaust-air function With flow control option
• Sealing principle Soft
• Mounting position optional
Buy currently uses Select Automation shop pricing and checkout.
Tiger valve 2000
• Solenoid valve in a functional, timeless design with closed housing front.
• Sturdy and reliable
• Wide range of voltages thanks to individual coils
• Principle with armature tube
• To EU Explosion Protection Directive (ATEX)
