Spiral plastic tubing, PPS-4-7,5-1/4-BL
SKU: 19798
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Spiral plastic tubing PPS, Colour Blue
• Working length 7.5 m
• Outside diameter 6.3 mm
• Block length 0.34 m
• Inside diameter 4.7 mm
• Winding diameter 75 mm
• Number of turns 44
• Temperature-dependent operating pressure -0.95 bar ... 21.2 bar
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
• Corrosion resistance class CRC 1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature -30 °C ... 80 °C
• Nominal torque 11 Nm
Buy currently uses Select Automation shop pricing and checkout.

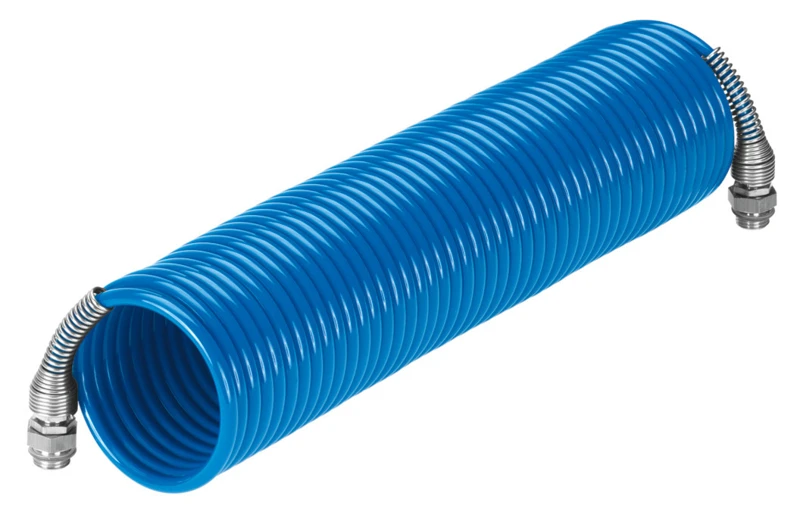

Spiral plastic tubing PPS
• The thermally and mechanically highly resilient, hydrolysis-resistant spiral plastic tubing PPS is supplied ready for connection, with two swivel fittings and captive sealing rings OL.
• Polyamide, brass, galvanised steel
• Pre-assembled with 2 rotatable connectors and captive sealing rings OL
• Highly resistant to microbes
• Operating medium: compressed air, vacuum
