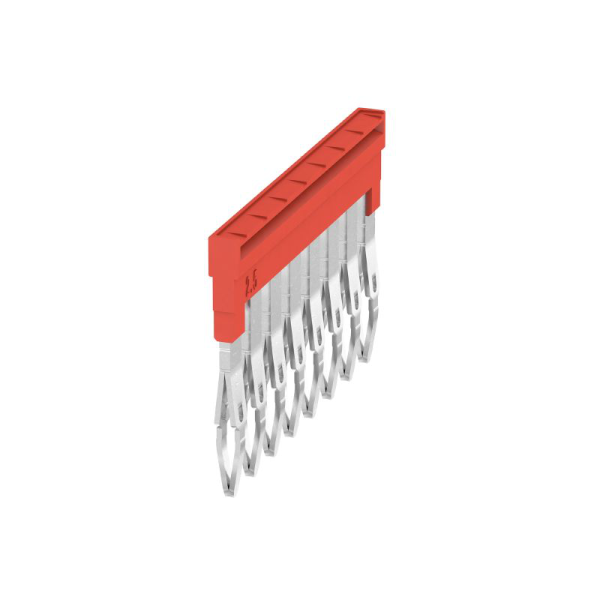

ZQV 1.5N/8 RD Cross Connect
SKU: 1985770000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The plug-in cross-connections feature easy handling and quick installation.
This saves a great deal of time during installation in comparison with screwed solutions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Cross-connector (terminal), Plugged.
Quantity: 20.
Depth: 2.8 mm.
Height: 21.9 mm.
Width: 26.5 mm.
Storage temperature: -25 °C...55 °C.
Material: Wemid.
Color: red.
UL 94 flammability rating: V-0.
Type of fixing: Plugged.
Type: Cross-connector.
Rated current, 2-pole: 17.5 A.
Rated current, multi-pole: 17.5 A.
Pitch in mm (P): 3.5 mm.
Number of poles: 8.
Rated current: 17.5 A.
