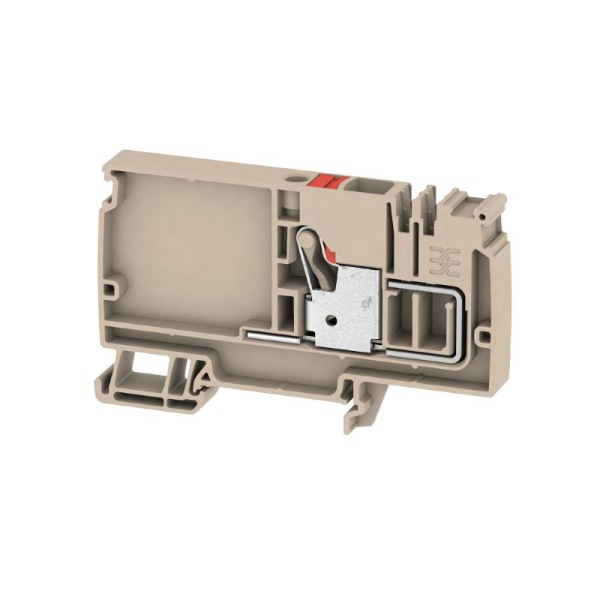

AAP12 10 LO RD
SKU: 1988190000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Any kind of machine can be fitted with the special modular concept.
Because of their homogeneous design and two different constructions alternating or grouping the potential distribution terminal blocks of AAP are successful.
In the grouped structure of the control voltage distribution, the potentials are arranged on distinct terminal blocks, forming whole potential blocks.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Supply terminal, PUSH IN.
Quantity: 20.
Depth: 53.5 mm.
Depth including DIN rail: 54 mm.
Height: 89 mm.
Width: 10 mm.
Storage temperature: -25 °C...55 °C.
Continuous operating temp., min.: -60 °C.
Continuous operating temp., max.: 130 °C.
Material: Wemid.
Color: dark beige.
Color of operational elements: red.
UL 94 flammability rating: V-0.
Installation advice: Rail.
Open sides: right.
Non-snap-on.
Type of fixing: snap-on.
Type of mounting: TS 35.
No snap-in pegs.
System specifications:
End cover plate required.
Number of potentials: 1.
Number of levels: 1.
Number of clamping points per level: 1.
Number of potentials per tier: 1.
No Levels cross-connected internally.
No PE connection.
Rail: TS 35.
No N-function.
No PE function.
No PEN function.
Rating data:
Rated cross-section: 10 mm².
Rated voltage: 800 V.
Rated DC voltage: 800 V.
Rated current: 57 A.
Current at maximum wires: 57 A.
Standards: In accordance with IEC 60947-7-1.
Volume resistance according to IEC 60947-7-x: 0.56 mΩ.
Rated impulse withstand voltage: 8 kV.
Power loss in accordance with IEC 60947-7-x: 1.82 W.
Pollution severity: 3.
