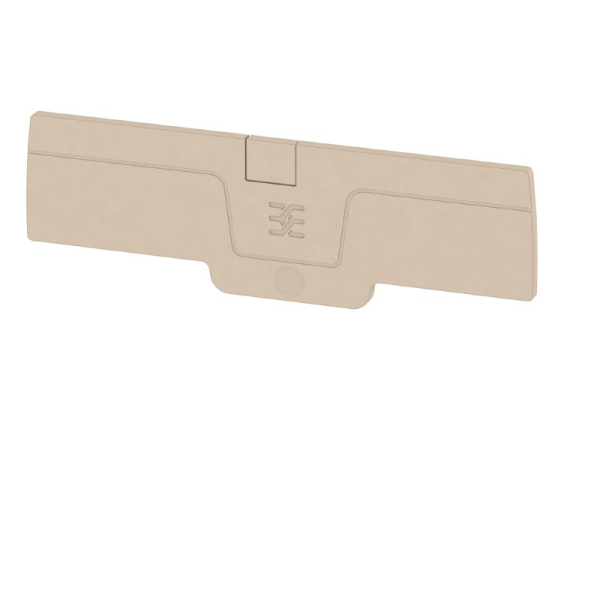

AEP DT 2.5 4C End Plate
SKU: 1989980000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
AEP DT 2.5 3C:
End plates are installed on the open side of the last modular terminal before the end bracket.
Using an end plate ensures the modular terminal functions properly and meets the stated rated voltage.
It provides protection from contact with live parts and makes the end terminal finger-proof.
Dimensions and weights:
Depth: 29.1 mm.
Depth (inches): 1.146 inch.
Height: 94.25 mm.
Height (inches): 3.711 inch.
Width: 2.1 mm.
Width (inches): 0.083 inch.
Net weight: 2.783 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -60°C.
Continuous operating temp., max.: 130°C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: Wemid.
Colour: dark beige.
UL 94 flammability rating: V-0.
System specifications:
Version: End plate.
Additional technical data:
Snap-on: Yes.
With snap-in pegs: Yes.
