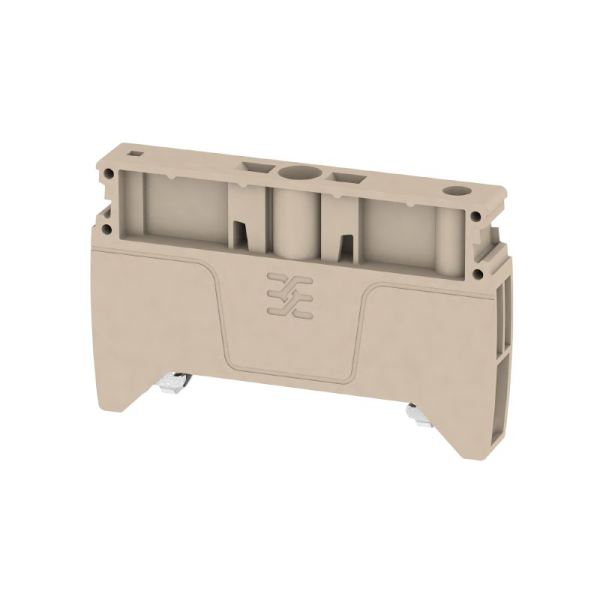

      AEB 35 SC/1

      SKU: 1991920000

      Out of stock

      Availability: Out of Stock

      Short Description
      Pricing available on request AEB 35 SC/1: End brackets from Weidmüller's product line ensure a stable, long-lasting attachment on the terminal rail and guard against slippage. Versions with and without screws are available. The end brackets feature marking choices, including group markers, as well as a test plug holder. Dimensions and weights: Depth: 36 mm. Depth (inches): 1.417 inch. Height: 58 mm. Height (inches): 2.283 inch. Width: 8 mm. Width (inches): 0.315 inch. Net weight: 12.8 g.
      1991920000
      Alternative image 1
      Temperatures: Storage temperature: -25 °C - 55 °C. Continuous operating temp., min.: -60°C. Continuous operating temp., max.: 130°C. Environmental Product Compliance: REACH SVHC: /. Material data: Material: Wemid GF 30. Colour: Dark beige. UL 94 flammability rating: V-0. System specifications: Version: For the terminals. Rail: TS 35. Additional technical data: Installation advice: Rail. Interlock: for screw fixing. Open sides: closed. Snap-on: No. Type of mounting: when screwed in. With snap-in pegs: No. Conductors for clamping (rated connection): Tightening torque, max.: 1 Nm. Tightening torque, min.: 0.5 Nm. General: Installation advice: Rail. Rail: TS 35.
