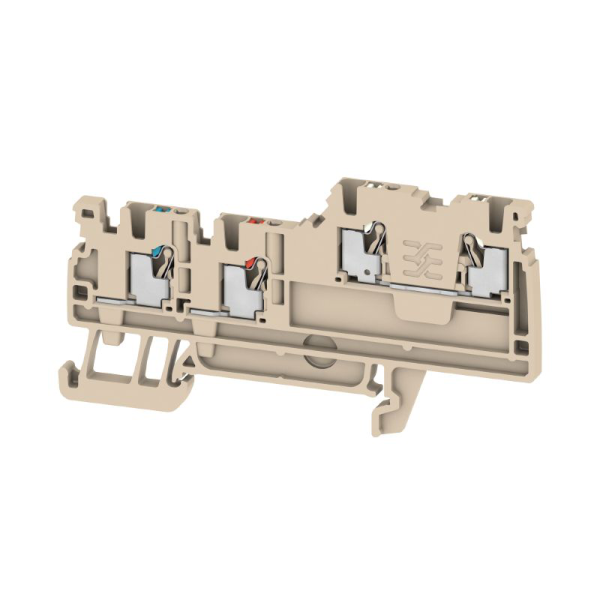

AIO21 1.5 SI
SKU: 1992260000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
AIO21 1.5 SI:
Klippon® Connect's PUSH IN technology allows for maximum flexibility in panel design.
The small design and simple handling enhance process efficiency from planning to execution.
Dimensions and weights:
Depth: 42 mm.
Depth (inches): 1.654 inch.
Depth including DIN rail: 43 mm.
Height: 80 mm.
Height (inches): 3.15 inch.
Width: 3.5 mm.
Width (inches): 0.138 inch.
Net weight: 6.54 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -60 °C.
Continuous operating temp., max.: 130 °C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: Wemid.
Colour: dark beige.
Colour of operational elements: blue, red, white.
UL 94 flammability rating: V-0.
Rating data IECEx/ATEX:
Certificate No. (ATEX): TUEV17ATEX8031U.
Certificate No. (IECEX): IECEXTUR17.0016U.
Max. voltage (ATEX): 220 V.
Current (ATEX): 12 A.
Wire cross section max. (ATEX): 1.5 mm².
Max. voltage (IECEX): 220 V.
Current (IECEX): 12 A.
Wire cross section max. (IECEX): 1.5 mm².
Marking EN 60079-7: Ex eb II C Gb.
Ex 2014/34/EU label: II 2 G D.
System specifications:
End cover plate required: Yes.
Number of potentials: 3.
Number of levels: 2.
Levels cross-connected internally: No.
PE connection: No.
Rail: TS 35.
N-function: Yes.
PE function: No.
PEN function: No.
Additional technical data:
Installation advice: Rail.
Open sides: right.
Snap-on: No.
Type of fixing: Snap-on.
Type of mounting: TS 35.
With snap-in pegs: No.
Conductors for clamping (rated connection):
Blade size: 0.4 x 2.0 mm.
Clamping range, max.: 1.5 mm².
Clamping range, min.: 0.14 mm².
Connection cross-section, stranded, max.: 1.5 mm².
Connection cross-section, stranded, min.: 0.5 mm².
Connection direction: top.
Gauge to IEC 60947-1: A1.
Number of connections: 4.
Stripping length: 8 mm.
Tube length for wire-end ferrule with plastic collar DIN 46228/4:
Tube length:
min.: 6 mm.
max.: 8 mm.
Cross-section for conductor connection:
nominal: 0.25 mm².
min.: 0.14 mm².
max.: 0.75 mm².
Tube length for wire-end ferrule without plastic collar DIN 46228/1:
Tube length:
min.: 6 mm.
max.: 8 mm.
Cross-section for conductor connection:
nominal: 0.25 mm².
min.: 0.14 mm².
max.: 0.75 mm².
Tube length:
nominal: 6 mm.
Cross-section for conductor connection:
min.: 0.5 mm².
max.: 1 mm².
Tube length:
nominal: 10 mm.
Cross-section for conductor connection:
nominal: 1.5 mm².
Type of connection: PUSH IN.
Wire connection cross section AWG, max.: AWG 14.
Wire connection cross section AWG, min.: AWG 26.
Wire connection cross section, finely stranded, max.: 1.5 mm².
Wire connection cross section, finely stranded, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 1.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
Wire connection cross-section, solid core, max.: 1.5 mm².
Wire connection cross-section, solid core, min.: 0.5 mm².
CSA rating data:
Certificate No. (CSA): 200039-70089609.
Current size D (CSA): 13 A.
Voltage size D (CSA): 150 V.
Wire cross section max. (CSA): 14 AWG.
Wire cross section min. (CSA): 26 AWG.
General:
Installation advice: Rail.
Rail: TS 35.
Standards: In accordance with IEC 60947-7-1.
Wire connection cross section AWG, max.: AWG 14.
Wire connection cross section AWG, min.: AWG 26.
Rating data:
Rated cross-section: 1.5 mm².
Rated voltage: 250 V.
Rated DC voltage: 250 V.
Rated current: 13.5 A.
Current at maximum wires: 13.5 A.
Standards: In accordance with IEC 60947-7-1.
Volume resistance according to IEC 60947-7-x: 1.83 mΩ.
Rated impulse withstand voltage: 4 kV.
Power loss in accordance with IEC 60947-7-x: 0.56 W.
Pollution severity: 3.
Surge voltage category: III.
UL rating data:
Certificate No. (cURus): E60693.
Conductor size Factory wiring max. (cURus): 14 AWG.
Conductor size Factory wiring min. (cURus): 26 AWG.
Conductor size Field wiring max. (cURus): 14 AWG.
Conductor size Field wiring min. (cURus): 26 AWG.
Current size D (cURus): 13 A.
Voltage size D (cURus): 150 V.
Important note:
Product information: For the wire end ferrules H1/10 and H1.5/10 a stripping length of 10 mm is to apply.
