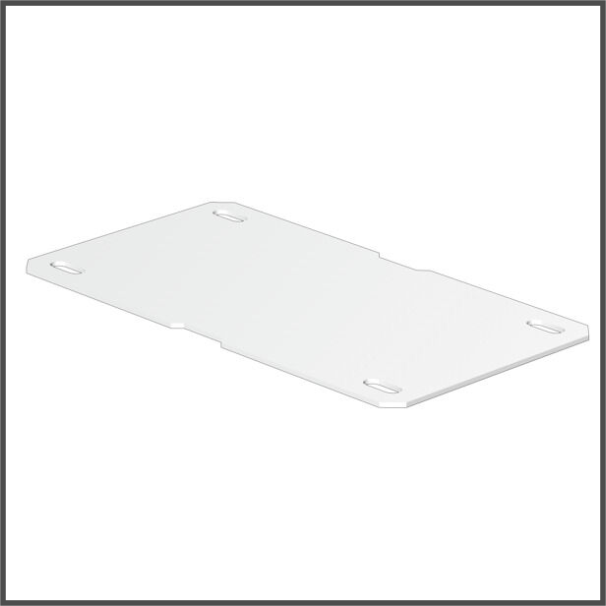

SFX 30/60 MM WS
SKU: 2005360000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
SFX markers are the preferred choice for identifying cables if you opt for a classic cable tie solution.
Cables do not by nature always run in a straight line.
The material used in SFX markers addresses this circumstance with highly flexible polyurethane.
The marker follows every curve of the cable and latches on without resistance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Slim Fix, Conductor and cable markers.
Quantity: 300.
Depth: 0.6 mm.
Height: 60 mm.
Width: 32 mm.
Operating temperature range: -40...90 °C.
Colour: White.
No Halogen.
Material: Polyurethane.
Number per roll: 300.
Size of labelling field: 45 x 29.5 mm.
UL 94 flammability rating: HB.
Conductor and cable markers:
Cable tie passage: Flat.
Conductor O.D.: 7 -.
Conductor O.D., min.: 7 mm.
Suitable cable tie: Plastic.
Text field height: 29.5 mm.
Text field width: 45 mm.
