DEK 5/6 MM WS
SKU: 2007120000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

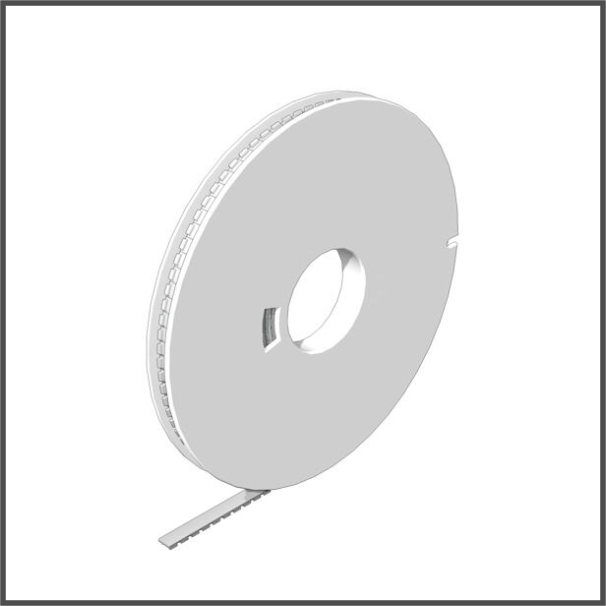

DEK 5/6 MM WS/DEK:
Multi-Mark terminal markers make use of a unique two-component composite material.
The strong base contour of the marker clamps securely into the connector.
The elastic surface finish makes the marker simple to mount.
This carefully perforated material allows the strips to be stretched to meet the little spacing variances that tend to accumulate, particularly with long terminal blocks.
Another advantage is the surface material's high printability, which ensures long-lasting and wear-resistant labelling.
A print resolution of 300 dpi results in a legible script.
Your advantages with multi-Mark:
Printing with a firm hold and durability.
Continuous strips save installation time.
Mounting is easy thanks to an innovative composite material.
Large label field for maximum legibility.
Manufacturer independence provides high flexibility.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Height: 5 mm.
Height (inches): 0.197 inch.
Width: 6 mm.
Width (inches): 0.236 inch.
Net weight: 0.1 g.
Temperatures:
Operating temperature range: -50 - 90 °C.
Environmental Product Compliance:
REACH SVHC: /.
General data:
Application/manufacturer: Weidmueller.
Colour: white.
compatible printer: THM MULTIMARK, THM MULTIMARK PLUS.
Halogen: No.
Material: PC-ABS, TPU.
Operating temperature range: -50 - 90 °C.
Operating temperature range, max.: 90 °C.
Operating temperature range, min.: -50 °C.
Orientation of print: horizontal and vertical.
Printed characters: without.
Size of labelling field: 4.5 x 5.7 mm.
UL 94 flammability rating: V-2.
Version: halogen-free.
Width: 6 mm.
