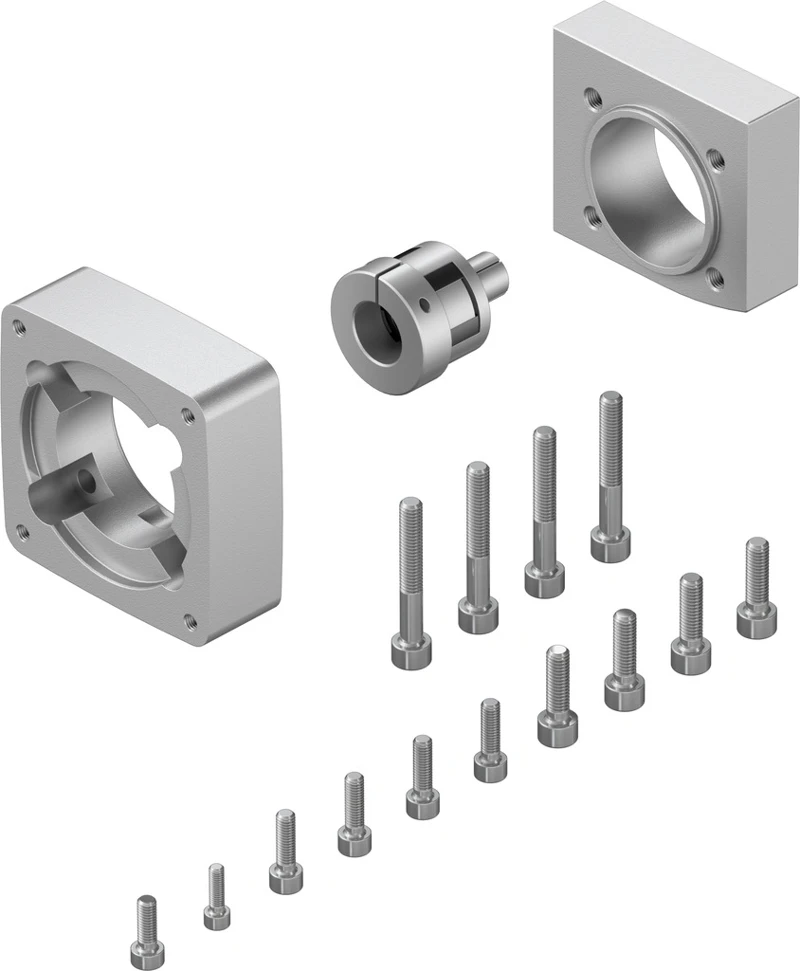

Axial kit, EAMM-A-L38-60P

Specifications • Toothed belt axes EGC-TB-KF, with recirculating ball bearing guide • Accessories, Axial kit • Nominal length 37.7 mm • Mounting position optional • Max. rotational speed 8000 rpm • LABS (PWIS) conformity VDMA24364-B2-L • Storage temperature -25 °C ... 60 °C • Relative air humidity 0 - 95% • Degree of protection IP40 • Ambient temperature -10 °C ... 60 °C • Mass moment of inertia 3.5 kgmm² • Transmittable torque 4.4 Nm • Product weight 300 g • Interface code, actuator L38 • Interface code, motor in 60P • Note on materials RoHS-compliant
