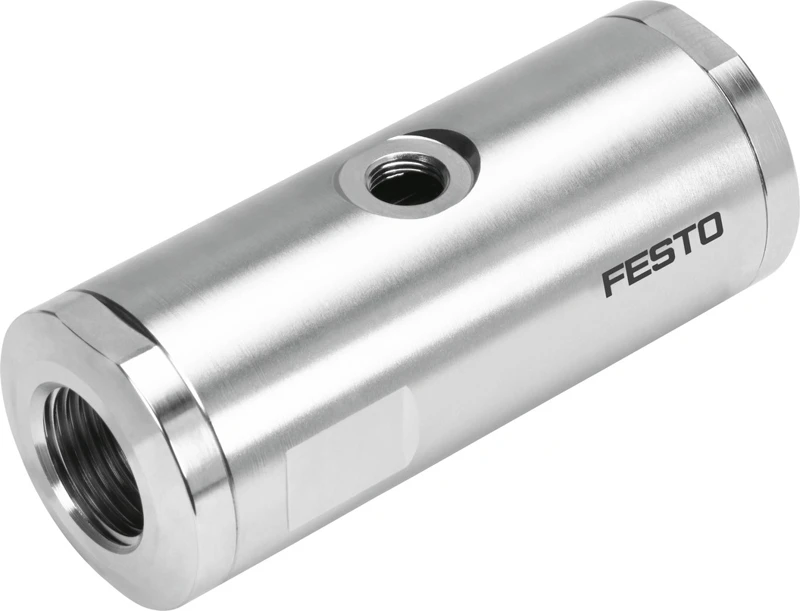

Pinch valve, VZQA-C-M22U-…
SKU: 2037881
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pinch valves VZQA
• See datasheet for available configurations
• Design Pinch valve, pneumatically actuated
• Type of actuation Pneumatic
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Valve function 2/2 open, single solenoid
• Flow direction Reversible
• Medium pressure 0 MPa ... 0.4 MPa
• Medium pressure 0 bar ... 4 bar
• Medium pressure 0 psi ... 58 psi
• Operating pressure 0.1 MPa ... 0.65 MPa
• Operating pressure 1 bar ... 6.5 bar
• Operating pressure 14.5 psi ... 94.25 psi
• Nominal pressure PN 10
Buy currently uses Select Automation shop pricing and checkout.
Pinch valve VZQA
• Normally closed or normally open? The choice is yours.
• With the pinch valve VZQA, you can control media flows such as granulate, fluids containing solids and highly viscous or abrasive media even better.
• The compact valve is quick to install, easy to clean and offers modular configuration.
• Modular design
• Quick and easy replacement of the diaphragm
• For critical, abrasive and viscous media
• Easy-to-clean design
• Flow direction is freely selectable
• Versions with end-position sensing
