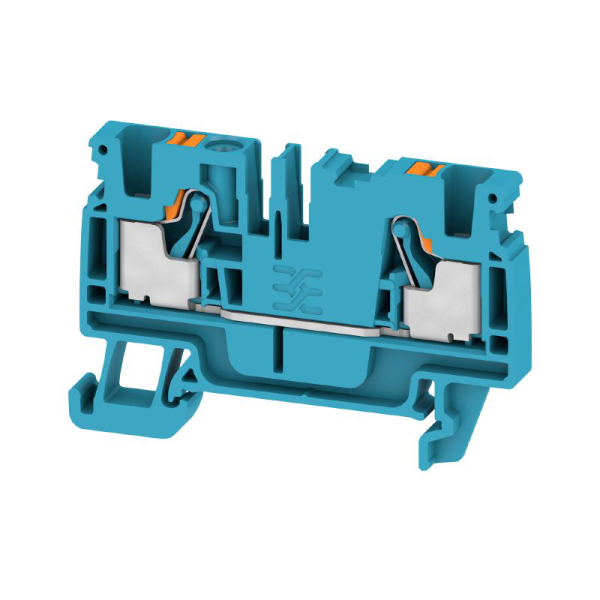

A2C 4 BL
SKU: 2051210000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
A2C 4 BL:
In electrical engineering and panel building, the traditional prerequisite is to pass through power, signal, and data.
The insulating substance, connection system, and terminal block design are key distinguishing elements.
One or more conductors can be joined or connected using a feed-through terminal block.
They may have many connection levels with the same potential or are insulated from each other.
Dimensions and weights:
Depth: 39.5 mm.
Depth (inches): 1.555 inch.
Depth including DIN rail: 40.5 mm.
Height: 60 mm.
Height (inches): 2.362 inch.
Width: 6.1 mm.
Width (inches): 0.24 inch.
Net weight: 9.57 g.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -60 °C.
Continuous operating temp., max.: 130 °C.
Environmental Product Compliance:
REACH SVHC: /.
Buy currently uses Select Automation shop pricing and checkout.
Material data:
Material: Wemid.
Colour: Blue.
Colour of operational elements: orange.
UL 94 flammability rating: V-0.
Rating data IECEx/ATEX:
Certificate No. (ATEX): TUEV16ATEX7939U.
Certificate No. (IECEX): IECEXTUR16.0045U.
Max. voltage (ATEX): 550 V.
Current (ATEX): 28 A.
Wire cross section max. (ATEX): 4 mm².
Max. voltage (IECEX): 550 V.
Current (IECEX): 28 A.
Wire cross section max. (IECEX): 4 mm².
Marking EN 60079-7: Ex ec II C Gc.
Ex 2014/34/EU label: II 3 G D.
System specifications:
End cover plate required: Yes.
Number of potentials: 1.
Number of levels: 1.
Number of clamping points per level: 2.
Number of potentials per tier: 1.
Levels cross-connected internally: No.
PE connection: No.
Rail: TS 35.
N-function: No.
PE function: No.
PEN function: No.
Additional technical data:
Explosion-tested version: Yes.
Installation advice: Rail.
Open sides: right.
Snap-on: No.
Type of fixing: Snap-on.
Type of mounting: TS 35.
With snap-in pegs: No.
Conductors for clamping (additional connection):
Connection type, additional connection: PUSH IN.
Conductors for clamping (rated connection):
Blade size: 0.6 x 3.5 mm.
Clamping range, max.: 6 mm².
Clamping range, min.: 0.14 mm².
Connection cross-section, stranded, max.: 6 mm².
Connection cross-section, stranded, min.: 0.5 mm².
Connection direction: top.
Gauge to IEC 60947-1: A4.
Number of connections: 2.
Stripping length: 12 mm.
Tube length for twin wire-end ferrule:
Tube length:
min.: 8 mm.
max.:12 mm.
Cross-section for conductor connection:
min.: 0.5 mm².
max.: 1.5 mm².
Tube length for wire-end ferrule with plastic collar DIN 46228/4:
Tube length:
min.: 8 mm.
max.: 12 mm.
Cross-section for conductor connection:
min.: 0.5 mm².
max.: 1.5 mm².
Tube length:
min.: 7 mm.
max.: 12 mm.
Cross-section for conductor connection:
min.: 1.5 mm².
max.: 2.5 mm².
Tube length:
min.: 9 mm.
max.: 15 mm.
Cross-section for conductor connection:
nominal.: 4 mm².
min.: 4 mm².
max.: 6 mm².
Tube length for wire-end ferrule without plastic collar DIN 46228/1:
Tube length:
min.: 8 mm.
max.: 12 mm.
Cross-section for conductor connection:
min.: 0.5 mm².
max.: 1.5 mm².
Tube length:
min.: 7 mm.
max.: 12 mm.
Cross-section for conductor connection:
min.: 1.5 mm².
max.: 2.5 mm².
Tube length:
min.: 9 mm.
max.: 15 mm.
Cross-section for conductor connection:
nominal: 4 mm².
min.: 4 mm².
max.: 6 mm².
Twin wire-end ferrules, max.: 1.5 mm².
Twin wire-end ferrules, min.: 0.5 mm².
Type of connection: PUSH IN.
Wire connection cross section AWG, max.: AWG 12.
Wire connection cross section AWG, min.: AWG 26.
Wire connection cross section, finely stranded, max.: 6 mm².
Wire connection cross section, finely stranded, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 6 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 4 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
Wire connection cross-section, solid core, max.: 4 mm².
Wire connection cross-section, solid core, min.: 0.5 mm².
CSA rating data:
Certificate No. (CSA): 200039-70089609.
Current size B (CSA): 30 A.
Current size C (CSA): 30 A.
Current size D (CSA): 5 A.
Voltage size B (CSA): 600 V.
Voltage size C (CSA): 600 V.
Voltage size D (CSA): 600 V.
Wire cross section max. (CSA): 10 AWG.
Wire cross section min. (CSA): 26 AWG.
General:
Installation advice: Rail.
Rail: TS 35.
Standards: IEC 60947-7-1.
Wire connection cross section AWG, max.: AWG 12.
Wire connection cross section AWG, min.: AWG 26.
Rating data:
Rated cross-section: 4 mm².
Rated voltage: 800 V.
Rated DC voltage: 800 V.
Rated current: 32 A.
Current at maximum wires: 32 A.
Standards: IEC 60947-7-1.
Volume resistance according to IEC 60947-7-x: 1 mΩ.
Rated impulse withstand voltage: 8 kV.
Power loss in accordance with IEC 60947-7-x: 1.02 W.
Pollution severity: 3.
Surge voltage category: III.
UL rating data:
Certificate No. (cURus): E60693.
Conductor size Factory wiring max. (cURus): 10 AWG.
Conductor size Factory wiring min. (cURus): 26 AWG.
Conductor size Field wiring max. (cURus): 10 AWG.
Conductor size Field wiring min. (cURus): 26 AWG.
Current size B (cURus): 30 A.
Current size C (cURus): 30 A.
Current size D (cURus): 5 A.
Voltage size B (cURus): 600 V.
Voltage size C (cURus): 600 V.
Voltage size D (cURus): 600 V.
