Micro Controllers Micro800™ Family, Expansion I/O Modules, Expansion power supply module

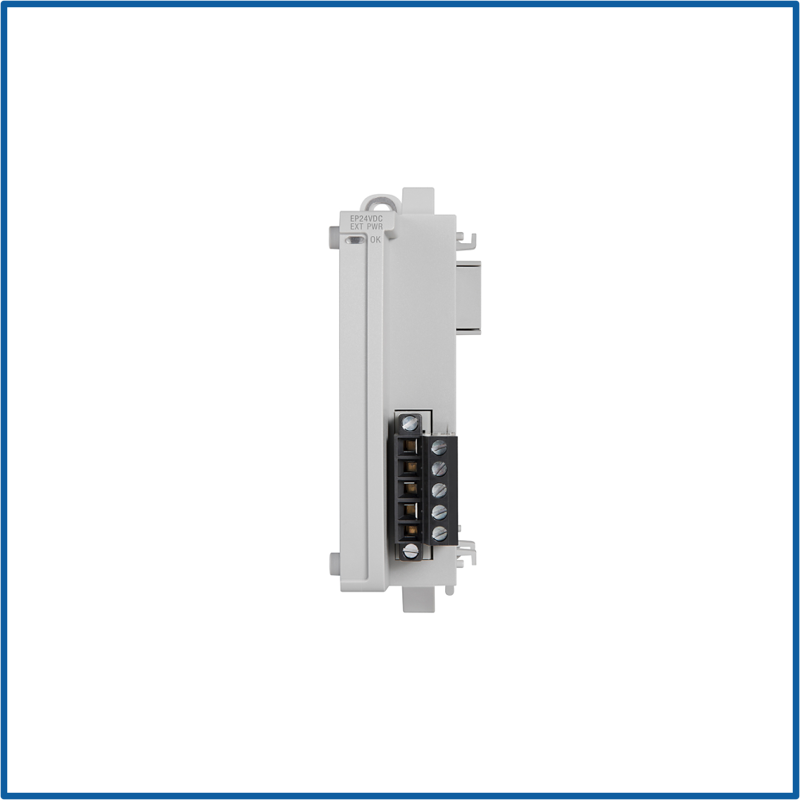

SKU: 2085-EP24VDC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2085-EP24VDC is a 24V DC expansion power supply module that is intended for use with the Micro800 family of programmable logic controllers.
It provides extra power to support expansion I/O modules when the base controller's internal power is insufficient.
Key features:
Power input: 24V DC nominal.
electricity Output: Provides electricity to the Micro800 extension I/O modules.
Use Case: Increases the power budget of Micro800 controllers such as Micro820, Micro830, and Micro850.
Mounting options include DIN rail or panel mount.
Compact design is ideal for control panels with limited space.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Input Voltage: 24V DC nominal.
Input Voltage Range: 20.4V DC to 28.8V DC.
Maximum Input Current: 2.0 A.
Inrush Current: 30 A max for 1 ms.
Output Voltage: Pass-through of 24V DC to expansion modules.
Isolation Voltage: 50V (continuous), basic insulation type.
Power Distribution:
Purpose: Supplies power to Micro800 expansion I/O modules only.
Does Not Power: The base controller or other devices.
Physical Characteristics:
Mounting Type: DIN rail or panel mount.
Dimensions (H x W x D): 90 x 25 x 87 mm (3.54 x 0.98 x 3.43 in.).
Weight: Approx. 150 g (0.33 lb).
Environmental Ratings:
Operating Temperature: 0°C to 55°C (32°F to 131°F).
Storage Temperature: -40°C to 85°C (-40°F to 185°F).
Relative Humidity: 5% to 95% non-condensing.
Certifications: CE, c-UL-us, KC, RCM.
