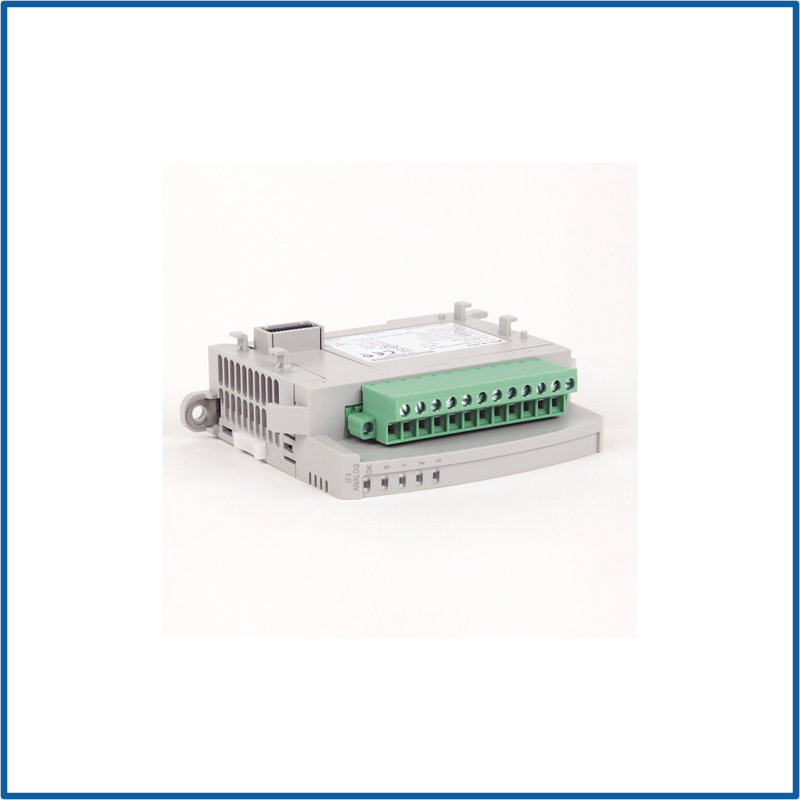

Micro Controllers Micro800™ Family, Expansion I/O Modules, 4-channel, 14-bit isolated voltage/current input
SKU: 2085-IF4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2085-IF4 is an analogue input extension module intended for use with Allen-Bradley Micro800 controllers such as the Micro820, Micro830, and Micro850.
It enables the small controllers to communicate with analogue devices such as sensors and transmitters.
Key features:
Analog Inputs: four channels.
Input types:
Voltage: ±10 V.
Current is 0-20mA.
Resolution: 12 bits.
Removable Terminal Block: For convenient wiring and maintenance.
DIN Rail Mountable: Compact and simple to install.
Status Indicators: LEDs that display module and channel status.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Signal Specs:
Input Channels: 4 analogue inputs.
Input Types:
Voltage: ±10V.
Current: 0–20mA.
Signal Type: Bipolar.
Resolution: 12-bit.
Conversion Type: Successive approximation.
Power Requirements:
Bus Current Draw:
5V DC: 100 mA.
24V DC: 50 mA.
Physical & Mounting:
Mounting Type: DIN rail.
Terminal Block: Removable for easy wiring.
Enclosure Rating: IP20.
Dimensions: Approx. 87 mm depth.
