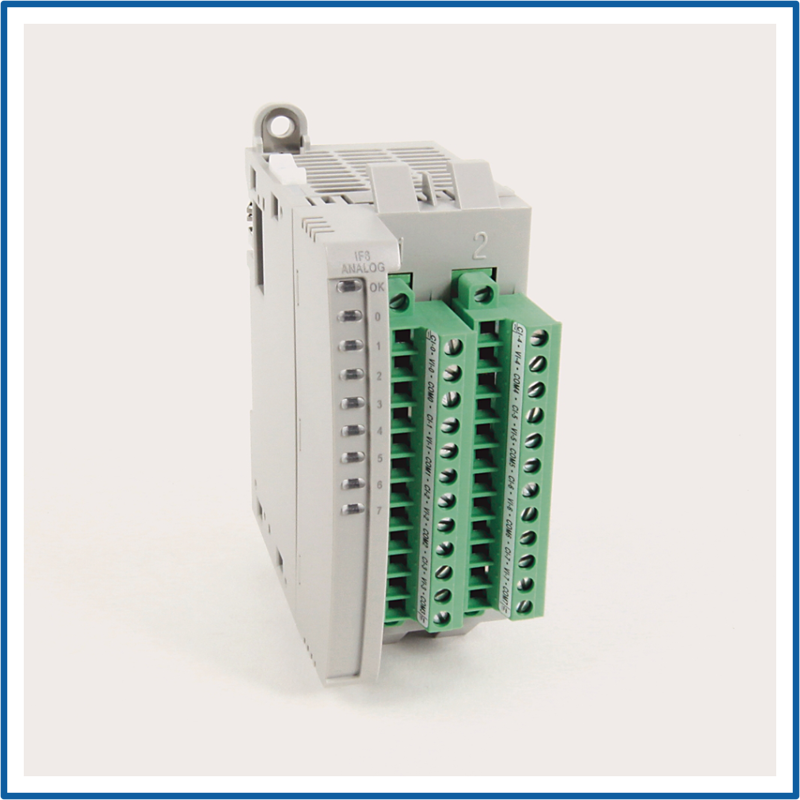

Micro Controllers Micro800™ Family, Expansion I/O Modules, 8-channel, 14-bit isolated voltage/current input
SKU: 2085-IF8
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2085-IF8 is an analogue input module that includes eight channels for reading analogue signals.
This bipolar device can handle a variety of industrial sensors and transducers since it can handle both voltage (±10V) and current (0–20mA) inputs.
This module enables Micro800 controllers to capture precise analogue data for process control and monitoring applications.
Key features:
Eight analogue input channels.
Supports voltage and current signals.
Bipolar input range is ±10V, 0-20mA.
DIN rail mountable.
Removable terminal block allows for easy wiring.
Compatible with the Micro820, Micro830, and Micro850 controllers.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Signal Specifications:
Input Channels: 8 analogue inputs.
Input Types:
Voltage: ±10V.
Current: 0–20mA.
Signal Configuration: Bipolar.
Resolution: 12-bit.
Conversion Method: Successive approximation.
Power Requirements:
Bus Current Draw:
5V DC: ~100 mA.
24V DC: ~50 mA.
Physical & Mounting:
Mounting Type: DIN rail.
Terminal Block: Removable for easy wiring.
Enclosure Rating: IP20.
Isolation: Differential inputs with channel-to-channel isolation (10 VDC).
