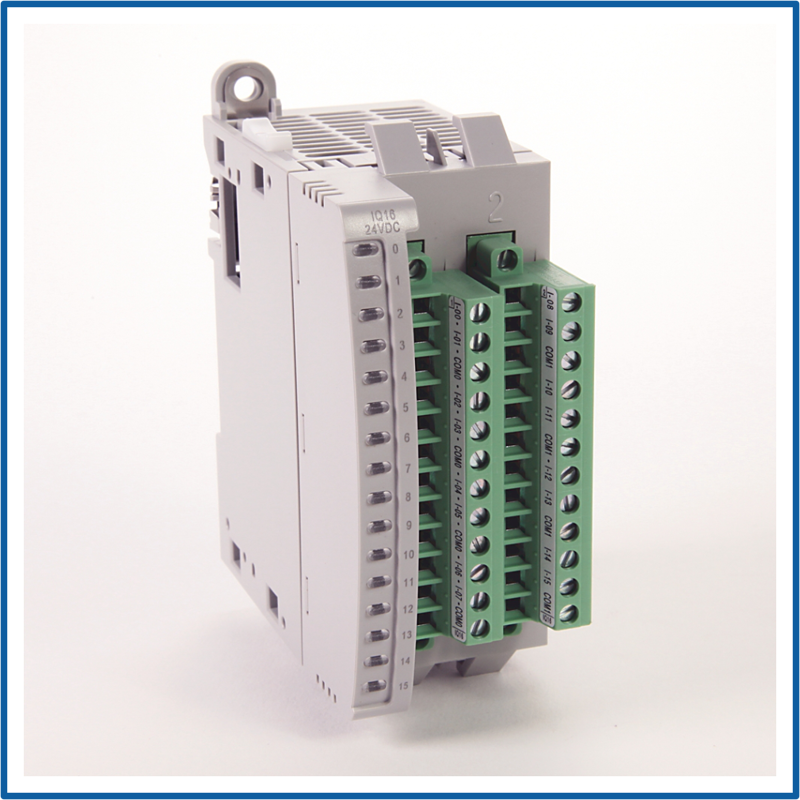

Micro Controllers Micro800™ Family, Expansion I/O Modules, 16-point, 12/24V DC sink/source input
SKU: 2085-IQ16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This module includes 16 discrete digital input channels, each rated for 12/24V DC operation.
It supports both sink and source wiring configurations, enabling for versatile integration with field devices like as sensors, switches, and push buttons.
The module is DIN rail mountable and comes with a removable terminal block that makes installation and maintenance easier.
Channels: sixteen digital inputs.
Voltage rating: 12/24 VDC.
Input type: Sink/Source (customizable).
Signal delay for ON/OFF transitions is typically 0.5 milliseconds.
Isolation is 50V continuous (basic insulation).
Mounting: DIN rail.
Status Indicators: LEDs for each input channel.
Enclosure rating: IP20.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Input Specifications:
Input Channels: 16 digital inputs.
Input Voltage Range: 12/24V DC.
Input Type: Sink/Source (configurable).
Input Current: 3 mA at 24V DC.
Signal Delay:
OFF to ON: 0.5 ms (typical).
ON to OFF: 0.5 ms (typical).
Isolation Voltage: 50V continuous (basic insulation).
Power Requirements:
Bus Current Draw:
5V DC: ~100 mA.
24V DC: ~50 mA.
Physical & Mounting:
Mounting Type: DIN rail.
Terminal Block: Removable.
Enclosure Rating: IP20.
Status Indicators: LED indicators for each input channel.
