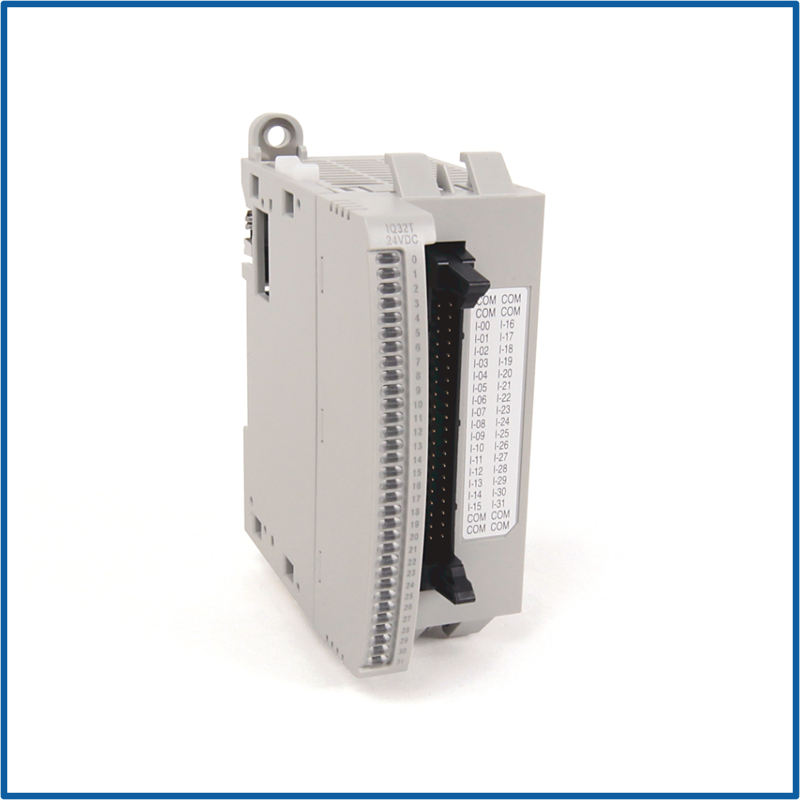

Micro Controllers Micro800™ Family, Expansion I/O Modules, 32-point, 12/24V DC sink/source input
SKU: 2085-IQ32T
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2085-IQ32T is a digital input extension module for Micro800 series controllers, including the Micro820, Micro830, and Micro850.
It has 32 digital input channels, allowing tiny PLCs to monitor a diverse set of discrete data from sensors, switches, and other field devices.
Digital inputs total 32 channels.
Voltage range: 12/24 VDC.
Sink/Source inputs are adjustable.
Signal Standard: IEC compatible.
Mounting: DIN rail.
Terminal Block: A removable component that allows for simpler wiring.
Enclosure rating: IP20.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Input Specifications:
Input Channels: 32 digital inputs.
Input Voltage Range: 12/24V DC.
Input Type: Sink/Source (configurable).
Input Signal Delay:
OFF to ON: 0.5 ms (typical).
ON to OFF: 0.5 ms (typical).
Input Current: 3 mA at 24V DC.
Isolation Voltage: 50V (continuous), basic insulation type.
Power Requirements:
Bus Current Draw:
5V DC: 100 mA.
24V DC: 50 mA.
Physical & Mounting:
Mounting Type: DIN rail.
Terminal Block: Removable.
Enclosure Rating: IP20.
Dimensions: Compact form factor for space-constrained panels.
Weight: 0.2 kg.
