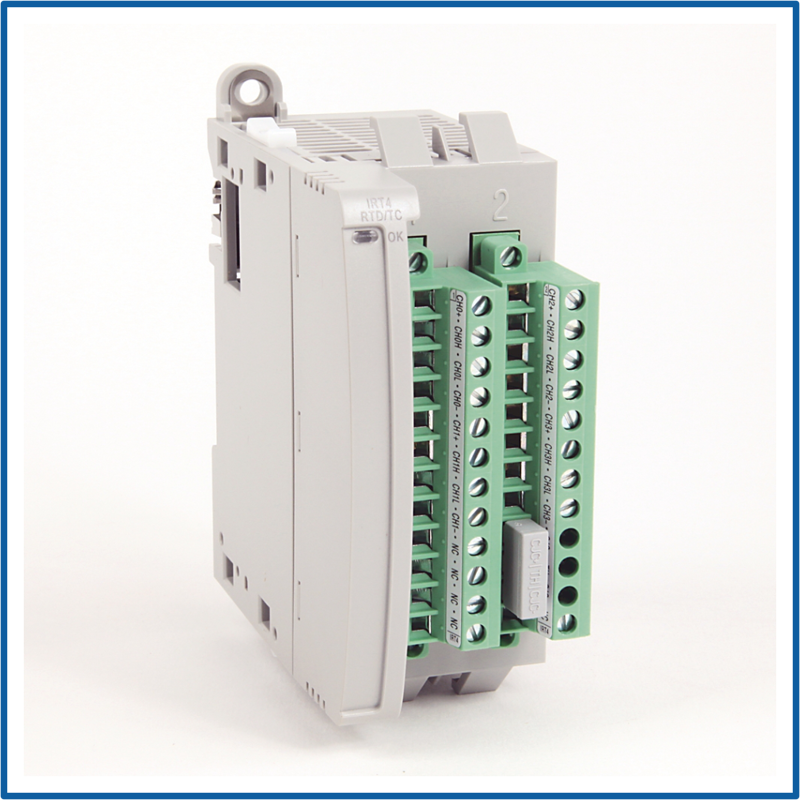

Micro Controllers Micro800™ Family, Expansion I/O Modules, 4-channel, 16-bit RTD and TC isolated input
SKU: 2085-IRT4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2085-IRT4 is an analogue input module for Allen-Bradley Micro800 controllers that accepts both thermocouple (TC) and resistance temperature detector (RTD) sensors.
It has four independent input channels, enabling for accurate temperature measurements from multiple sources.
The module supports a variety of sensor types, including J, K, T, E, R, S, B, and N thermocouples, as well as Pt100, Pt1000, Ni100, and Ni1000 RTDs.
Four analogue input channels.
Supports both TC and RTD sensors.
Built-in cold junction correction.
Isolation across channels and between buses.
LED status indicators.
IP20 enclosure rating.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Signal Specifications:
Input Channels: 4 isolated analogue inputs.
Sensor Types Supported:
Thermocouples (TC): J, K, T, E, R, S, B, N.
RTDs: Pt100, Pt1000, Ni100, Ni1000.
Input Type: Differential.
Resolution: 16-bit.
Cold Junction Compensation (CJC): Built in.
Isolation:
Channel-to-channel.
Channel-to-bus.
Power & Environmental:
Bus Current Draw:
5V DC: ~100 mA.
24V DC: ~50 mA.
Operating Temperature: –20°C to +65°C.
Enclosure Rating: IP20.
Physical & Mounting:
Mounting Type: DIN rail or panel mount.
Dimensions:
Depth: 87 mm.
Height: 3.543 inches (~90 mm).
Status Indicators: LED for I/O status.
