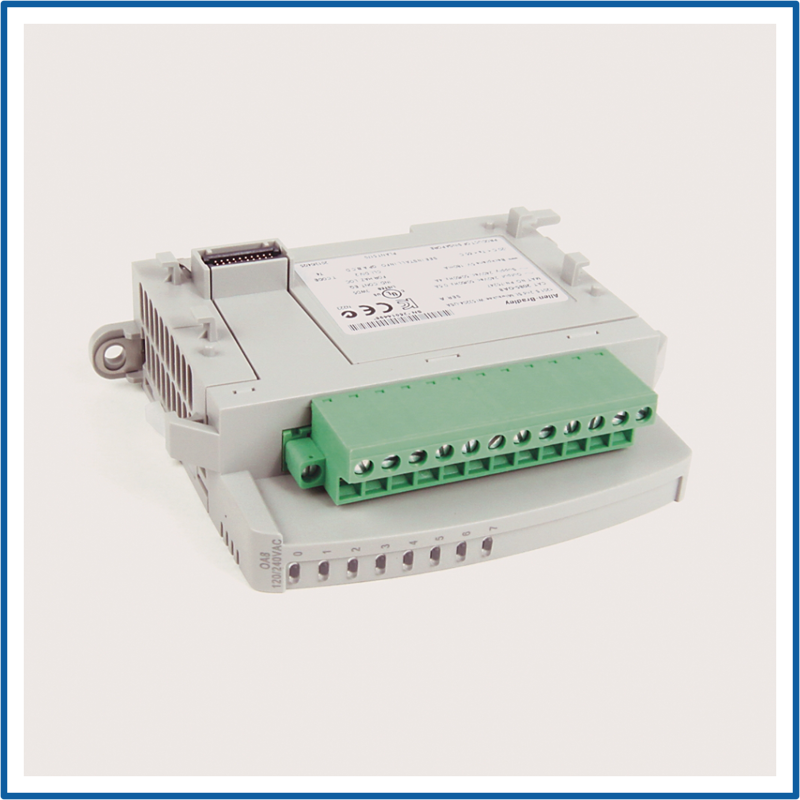

Micro Controllers Micro800™ Family, Expansion I/O Modules, 8-point, 120/240V AC triac output
SKU: 2085-OA8
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This module has eight triac output channels, each capable of switching AC loads like lamps, heaters, and solenoids.
Triac outputs are solid-state devices that provide fast, dependable switching for both resistive and inductive AC loads.
The module accepts 12/24V DC control inputs and can switch up to 240V AC, making it perfect for industrial automation applications where mechanical relay fatigue is an issue.
Channels: eight digital outputs.
Output type is triac (AC switching).
Voltage Support: 240V AC.
Control voltage: 12/24 volts DC.
Current rating is often up to 0.5A per channel.
Isolation occurs at both the channel and bus levels.
Mounting: DIN rail.
Status Indicators: These are LED indicators that show the output status.
Enclosure rating: IP20.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Output Specifications:
Output Channels: 8 triac outputs.
Output Type: Solid-state AC switching (triac).
Nominal Voltage Ratings:
120V AC, 240V AC.
Operating Voltage Range:
85–264V AC.
Maximum Output Current: 0.5A per channel.
Isolation Voltage:
240V continuous, reinforced insulation.
Type tested at 3250V DC for 60 seconds.
Switching Frequency: Suitable for low-speed AC control applications.
Power Requirements:
Bus Current Draw:
5V DC: ~100 mA.
24V DC: ~50 mA.
Physical & Mounting:
Mounting Type: DIN rail or panel mount.
Dimensions:
Height: 90 mm.
Width: 28 mm.
Depth: 87 mm.
Enclosure Rating: IP20.
Status Indicators: 8 yellow LEDs (one per channel).
