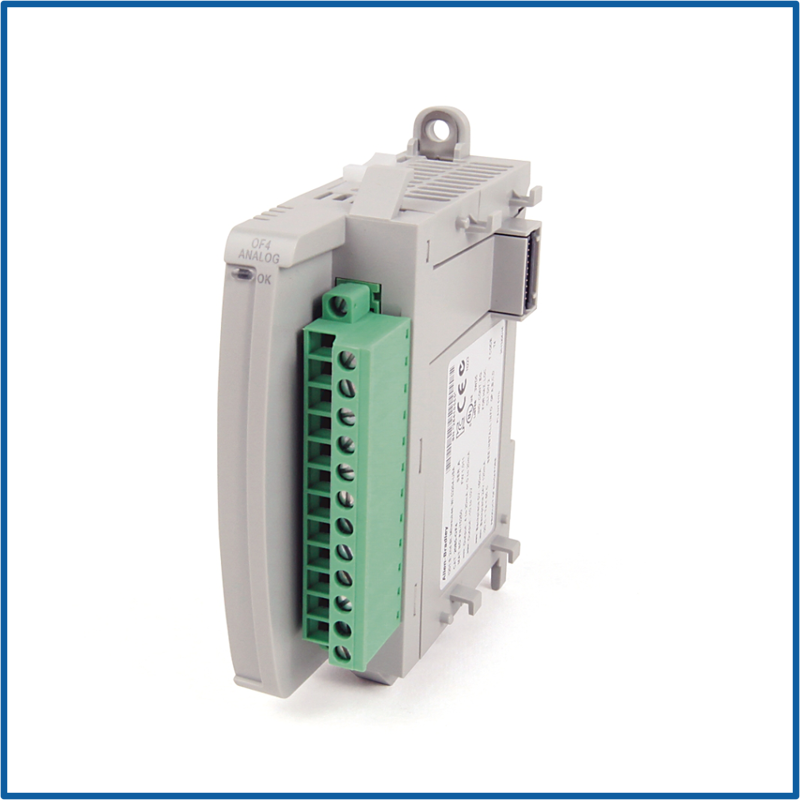

Micro Controllers Micro800™ Family, Expansion I/O Modules, 4-channel, 12-bit isolated voltage/current output
SKU: 2085-OF4
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This module has four analogue output channels, which enable the controller to deliver exact analogue signals to external devices such as actuators, control valves, and meters.
The device's bipolar architecture allows for voltage (±10V) and current (0-20mA) outputs, making it ideal for industrial automation applications.
Key features:
Channels: four analogue outputs.
Output types include ±10V voltage or 0-20mA current.
Signal configuration: bipolar.
Resolution: 16 bits for high-precision control.
Mounting: DIN rail.
Terminal Block: Removable for convenient wiring.
Enclosure rating: IP20.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Signal Specifications:
Output Channels: 4 analogue outputs.
Output Signal Types:
Voltage: ±10V.
Current: 0–20mA.
Signal Configuration: Bipolar.
Resolution: 16-bit.
Output Load:
Voltage: ≥1 kΩ.
Current: ≤500 Ω.
Conversion Type: Digital-to-Analog (DAC).
Power Requirements:
Bus Current Draw:
5V DC: ~100 mA.
24V DC: ~50 mA.
Physical & Mounting:
Mounting Type: DIN rail.
Terminal Block: Removable for easy wiring.
Enclosure Rating: IP20.
Dimensions: Compact form factor suitable for control panels.
