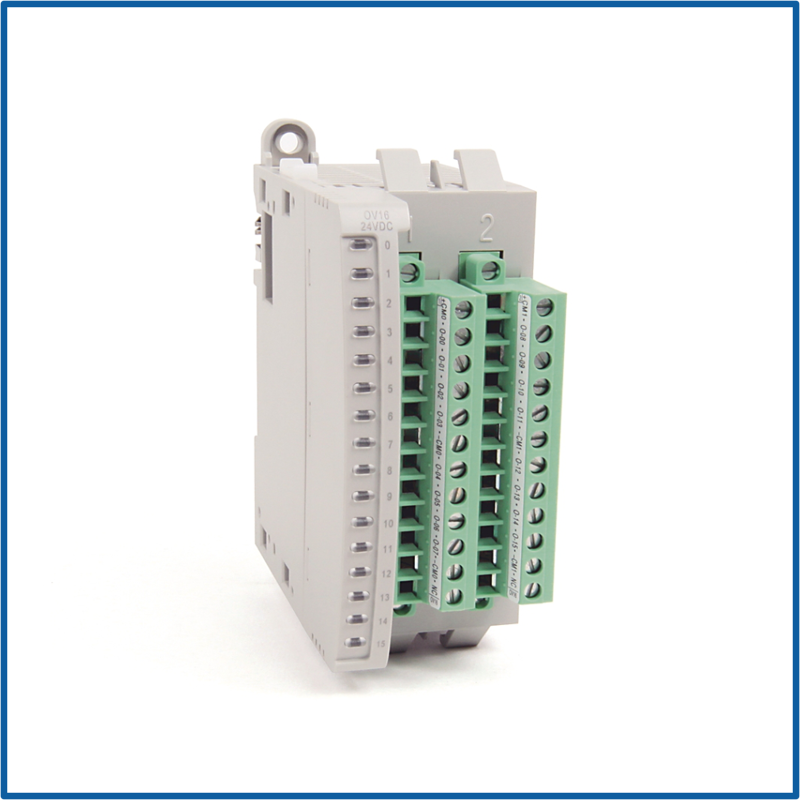

Micro Controllers Micro800™ Family, Expansion I/O Modules, 16-point, 12/24V DC sink transistor output
SKU: 2085-OV16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This module has 16 discrete digital outputs, all of which are configured as sink-type, meaning they connect to ground when active.
It accepts 12/24V DC output signals, making it appropriate for operating a wide range of field devices like solenoids, relays, and indicator lights.
The module is compact and DIN rail mountable, featuring a removable terminal block for easier wiring and maintenance.
Channels: sixteen digital outputs.
The output type is sink (12/24V DC).
Mounting: DIN rail.
Terminal Block: Removable.
Enclosure rating: IP20.
Status Indicators: These are LED indicators that show the output status.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Output Specifications:
Output Channels: 16 digital outputs.
Output Type: Sink (connects load to ground).
Output Voltage Range: 12/24V DC.
Output Current: Up to 0.5 A per channel.
Isolation Voltage: 50V continuous (basic insulation).
Surge Protection: Integrated for transient voltage suppression.
Power Requirements:
Bus Current Draw:
5V DC: ~100 mA.
24V DC: ~50 mA.
Physical & Mounting:
Mounting Type: DIN rail.
Terminal Block: Removable for easy wiring.
Enclosure Rating: IP20.
Status Indicators: LED indicators for each output channel.
