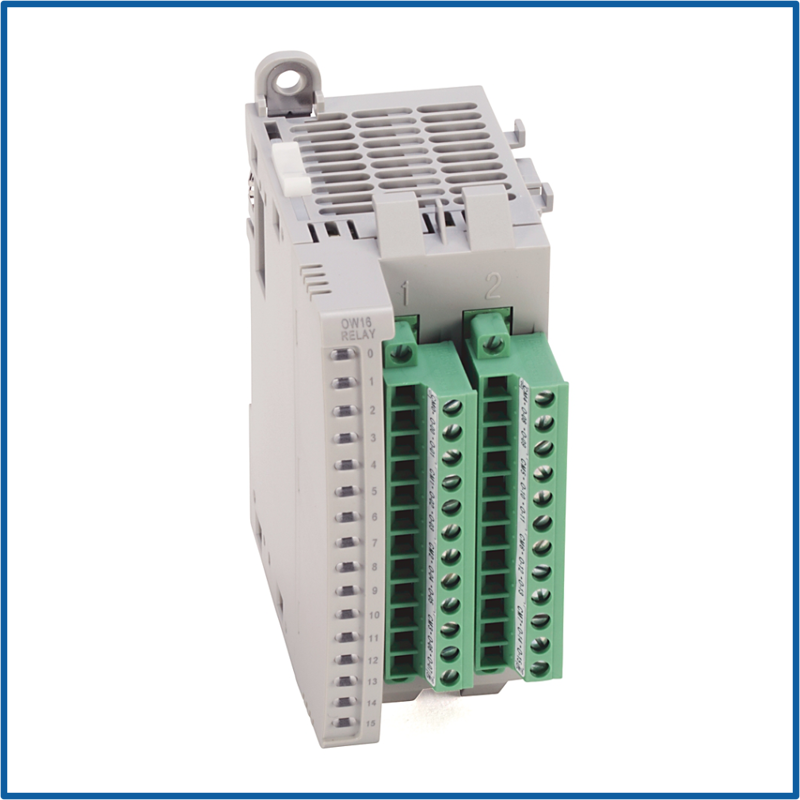

Micro Controllers Micro800™ Family, Expansion I/O Modules, 16-point, AC/DC relay output
SKU: 2085-OW16
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This module has 16 relay output channels that can switch both AC and DC loads, making it excellent for applications needing electrical isolation and compatibility with mixed-voltage equipment.
Each channel can handle nominal voltages ranging from 120VAC to 240VAC, 24VDC to 125VDC, and has a current rating of up to 2A.
Channels have 16 relay outputs.
Type of output: Mechanical relay.
Voltage support includes 12/24V DC and up to 240V AC.
Current rating: up to 2 amps per channel.
Isolation occurs at both the channel and bus levels.
The mounting options include DIN rail or panel.
Status Indicators: These are LED indicators that show the output status.
Enclosure rating: IP20.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Output Specifications:
Output Channels: 16 relay outputs.
Output Type: Mechanical relay (Form A contacts).
Nominal Voltage Ratings:
AC: 120V AC, 240V AC.
DC: 24V DC, 125V DC.
Operating Voltage Range:
AC: 85–264V AC.
DC: 15–125V DC.
Maximum Output Current: 2A per channel.
Inrush Current: Up to 450 mA.
Contact Isolation: Channel-to-channel and channel-to-bus isolation.
Power Requirements:
Bus Current Draw:
5V DC: ~100 mA.
24V DC: ~50 mA.
Physical & Mounting:
Mounting Type: DIN rail or panel mount.
Enclosure Rating: IP20.
Dimensions: Approx. 23.3 cm × 18.2 cm × 5.3 cm.
Weight: ~0.35 kg.
Status Indicators: LED indicators for each output channel.
