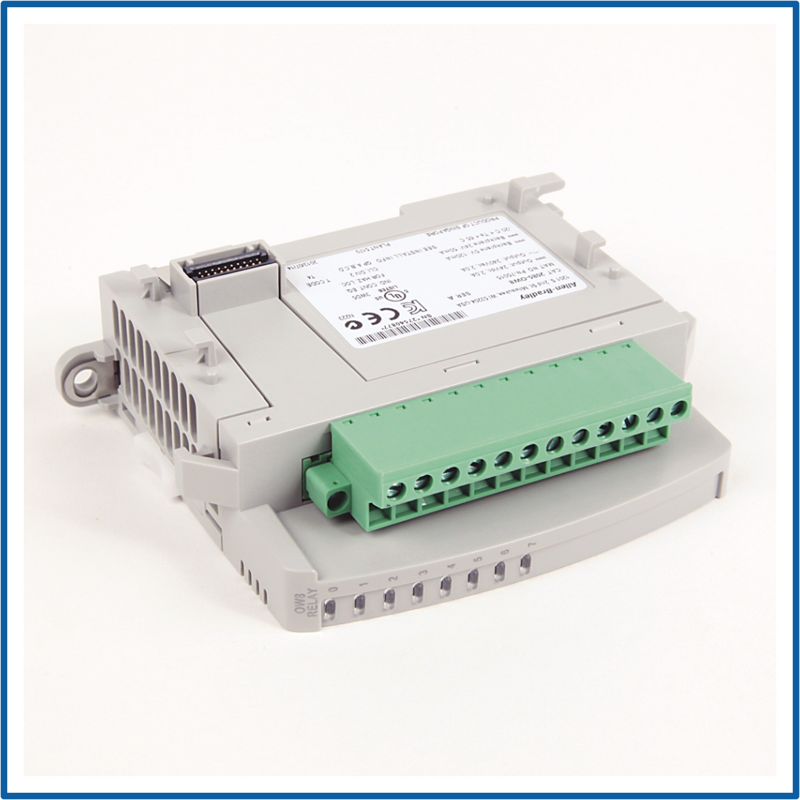

Micro Controllers Micro800™ Family, Expansion I/O Modules, 8-point, AC/DC relay output
SKU: 2085-OW8
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This module has eight relay output channels, each capable of switching both AC and DC loads.
Relay outputs provide electrical isolation and are suitable for applications that require compatibility with mixed-voltage equipment.
The module operates on 12/24V DC and up to 240V AC, with a current rating of up to 2A per channel, making it appropriate for operating solenoids, contactors, and indicator lights.
Channels: eight relay outputs.
The output type is mechanical relay (Form A contacts).
Voltage support includes 12/24V DC and up to 240V AC.
Current rating: up to 2 amps per channel.
Isolation occurs at both the channel and bus levels.
Mounting: DIN rail.
Status Indicators: These are LED indicators that show the output status.
Enclosure rating: IP20.
Buy currently uses Select Automation shop pricing and checkout.
Electrical & Output Specifications:
Output Channels: 8 relay outputs.
Relay Type: Form A (normally open).
Output Voltage Range:
AC: 85–264V AC.
DC: 15–125V DC.
Nominal Voltage Ratings:
120V AC, 240V AC.
24V DC, 125V DC.
Maximum Output Current: 2A per channel.
Inrush Current: Up to 450 mA.
Contact Isolation: Channel-to-channel and channel-to-bus isolation.
Power Requirements:
Bus Current Draw:
5V DC: ~100 mA.
24V DC: ~50 mA.
Physical & Mounting:
Mounting Type: DIN rail.
Terminal Block: Removable.
Enclosure Rating: IP20.
Status Indicators: LED indicators for each output channel.
