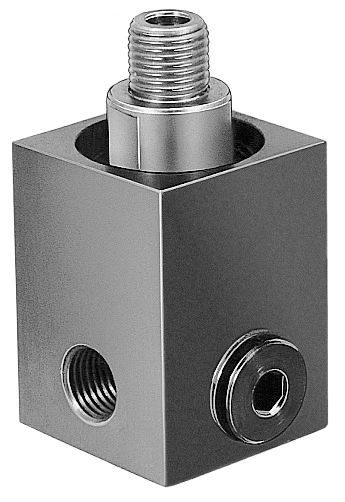

Rotary distributor, GF-1/4

Specifications • Rotary distributor GF • Single rotary through-feed (angular design) • Nominal size 11.5 mm • Mounting position optional • Operating pressure complete temperature range -0.095 MPa ... 1 MPa • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating pressure complete temperature range -13.775 psi ... 145 psi • Standard flow rate 1-2.1 (6->0) 2932 l/min • Standard flow rate 1-2.X open (6->0) 2977 l/min • Standard nominal flow rate 1.1-2.1 1792 l/min • Max. rotational speed 300 rpm • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Pneumatic connection, port 1 Male thread G1/4 • Pneumatic connection, port 2 Female thread G1/4
