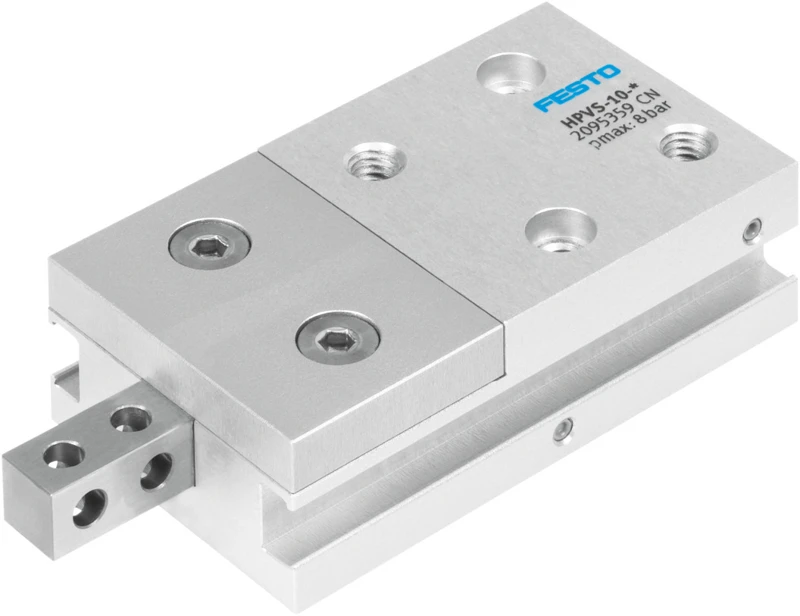

Feed separator, HPVS-10-10-A

Specifications • Feed separators HPVS • Stroke 10 mm • Piston diameter 10 mm • Max. replacement accuracy 0.3 mm • Max. stem backlash Sx 0.05 mm • Max. stem backlash Sz 0.03 mm • Max. angular gripper jaw backlash ax 0.12 deg • Max. angular gripper jaw backlash ay 0.2 deg • Max. angular gripper jaw backlash az 0.262 deg • Mounting of external fingers Through-hole • Cushioning No cushioning • Mounting position optional • Mode of operation Double-acting • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 45 N
