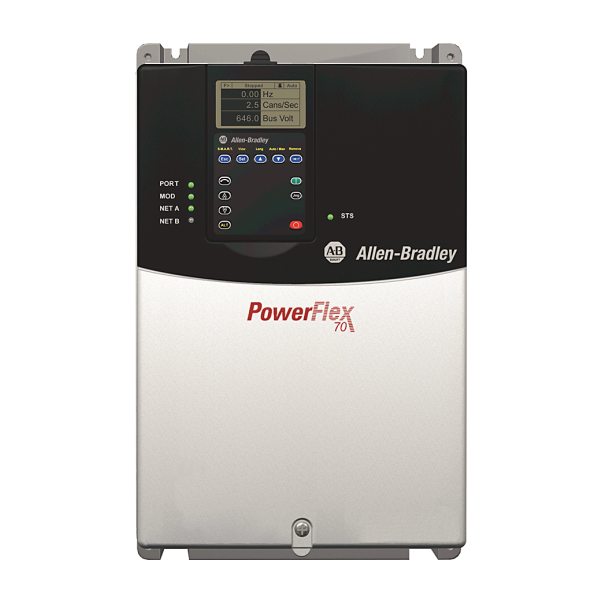

PowerFlex 70 AC Drive 22 A at 11 kW 20A Frame D

Specifications: Base Drive: Input Voltage: 400V AC, 3PH. Output Current: 22 Amps. Enclosure: Panel Mount – IP20 / NEMA Type 1, with conformal coating. Frame Size: D. Output Current Information: Output Amps: 22A cont, 24.2A 1Min, 33A Sec. Control and I/O: Enhanced Control, with Safe Torque Off. Brake IGBT: Brake IGBT. Brake Resistor: No Brake Resistor. EMC Filtering Options: Second Environment Filter per CE EMC directive (89/336-EEC). Options: Base Plus Options: Factory Assembled. Human Interface Module: No, HIM (Blank). Internal Communication Module: Device Net. Feedback Option: Standard Encoder.
