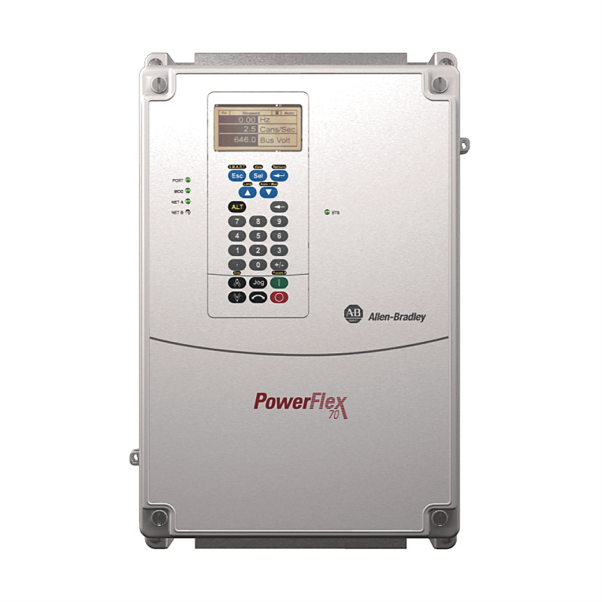

PowerFlex 70 AC Drive 11 A at 10 Hp 20A Frame D

Specifications: Base Drive: Input Voltage: 600V AC, 3PH. Output Current: 11 Amps. Enclosure: Wall / Machine Mount – IP66 / NEMA Type 4x/12 (Indoor Use), with conformal coating. Frame Size: D. Output Current Information: Output Amps: 11A Cont, 13.5A 1 Min, 18A 3 Sec. Brake IGBT: Brake IGBT. Brake Resistor: No Brake Resistor. EMC Filtering Options: Without CE compliant filter. Options: Base Plus Options: Base Plus Options Method. Human Interface Module: LCD Display, Full Numeric Keypad. Internal Communication Module: No Communication Module.
