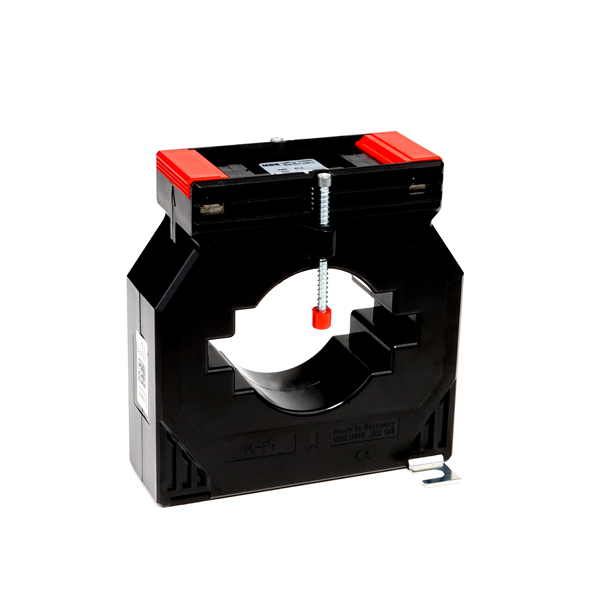

ASK 81.4 1600/5A CT cl 0.5
SKU: 21035
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
General specifications:
Isolation class: E.
Maximum operating voltage: Um 0.72 kV.
Nominal frequency: 50Hz (others on request).
Nominal thermal short-time current: Ith = 60 x In.
Over-current limiting factor: FS 5 up to 1500 A nominal current.
MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Class 0.5 current transformers 5A secondary (class 0.2 available on request),
ASK 81.4 current transformers,
MODEL ASK 81.4,
RATIO 1600/5A,
ROUND CONDUCTOR (⌀) 55 mm,
PRIMARY BAR CONDUCTOR 80 X 10 / 60 X 30 mm,
DESCRIPTION Standard current transformer,
CLASS 0.5,
VA 15,
DIMENSIONS (MM) (H) 124 x (W) 120 x (D) 58
