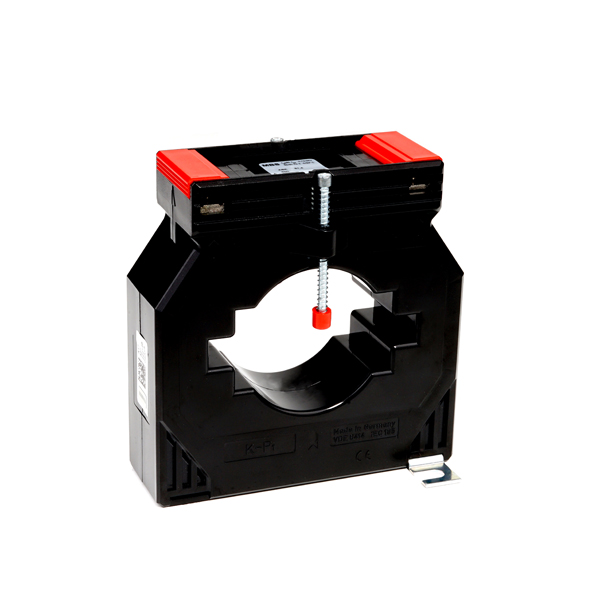

ASK 81.4 800/5A CT cl 1

General details: Class of isolation: E. Up to 0.72 kV is the maximum operating voltage. 50 Hz is the nominal frequency (others upon request). Ith = 60 x In is the nominal thermal short-time current. FS 5 is the over-current limiting factor up to a nominal current of 1500 A. MBS AG current transformers completely comply with VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
