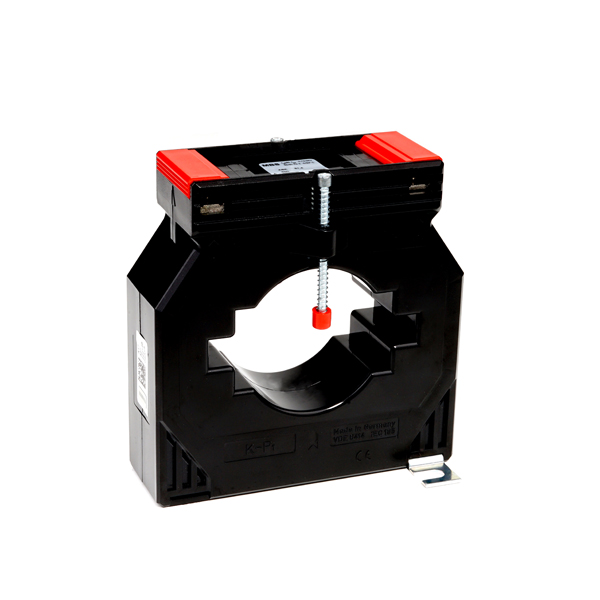

ASK 81.4 1250/5A CT cl 1
SKU: 21064
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Broad parameters:
E is the isolation class.
Operating voltage maximum: 0.72 kV.
Frequency nominal: 50 Hz (others upon request).
Thermal short-time current nominal: Ith = 60 x In.
FS 5, up to 1500 A nominal current, is the over-current limiting factor.
MBS AG current transformers completely adhere to IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Standard current transformers (5A secondary - class 1),
ASK 81.4 current transformers,
MODEL ASK 81.4,
RATIO 1250/5A,
ROUND CONDUCTOR (⌀) 55 mm,
PRIMARY BAR CONDUCTOR 80 X 10 / 60 X 30 mm,
DESCRIPTION Standard current transformer,
CLASS 1,
VA 15,
DIMENSIONS (MM) (H) 124 x (W) 120 x (D) 58
