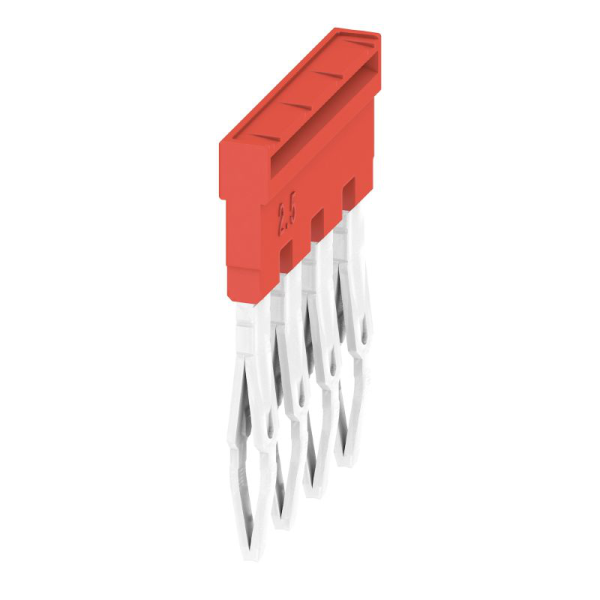

ZQV 2.5N/4 RD Cross Connect
SKU: 2108700000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
ZQV 2.5N/4 RD:
The plug-in cross-connections are easy to use and install.
This saves a significant amount of time during installation as compared to screwed alternatives.
Dimensions and weights:
Depth: 24.7 mm.
Depth (inches): 0.972 inch.
Height: 2.8mm.
Height (inches): 0.11 inch.
Width: 18.1 mm.
Width (inches): 0.713 inch.
Net weight: 2.38 g.
Buy currently uses Select Automation shop pricing and checkout.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: Wemid.
Colour: red.
UL 94 flammability rating: V-0.
Additional technical data:
Explosion-tested version: Yes.
Type of fixing: Plugged.
Type of mounting: Direct mounting.
Cross-connector:
Number of cross-connected terminals: 4.
Dimensions:
Pitch in mm (P): 5.1 mm.
General:
Number of poles: 4.
Rating data:
Rated current: 24 A.
Important note:
Product information:
Due to stability and temperature reasons, It is only possible to break out 60% of contact elements.
The usage of cross connectors reduces the rated voltage to 400V.
The voltage reduced to 25V if cut cross connection with blank cut edges are used.
