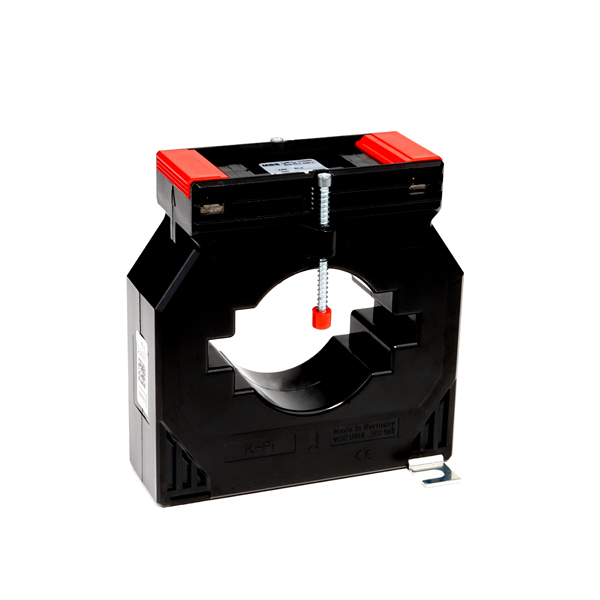

ASK 81.4 800/1A CT cl 1

Overall characteristics: E is the isolation class. Operating voltage maximum: approximately 0.72 kV. 50 Hz is the nominal frequency: alternative frequencies available upon request. Ith = 60 x In represents the nominal thermal short-time current. FS 5 is the over-current limiting factor up to 1500 A nominal current. MBS AG current transformers completely comply with IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
